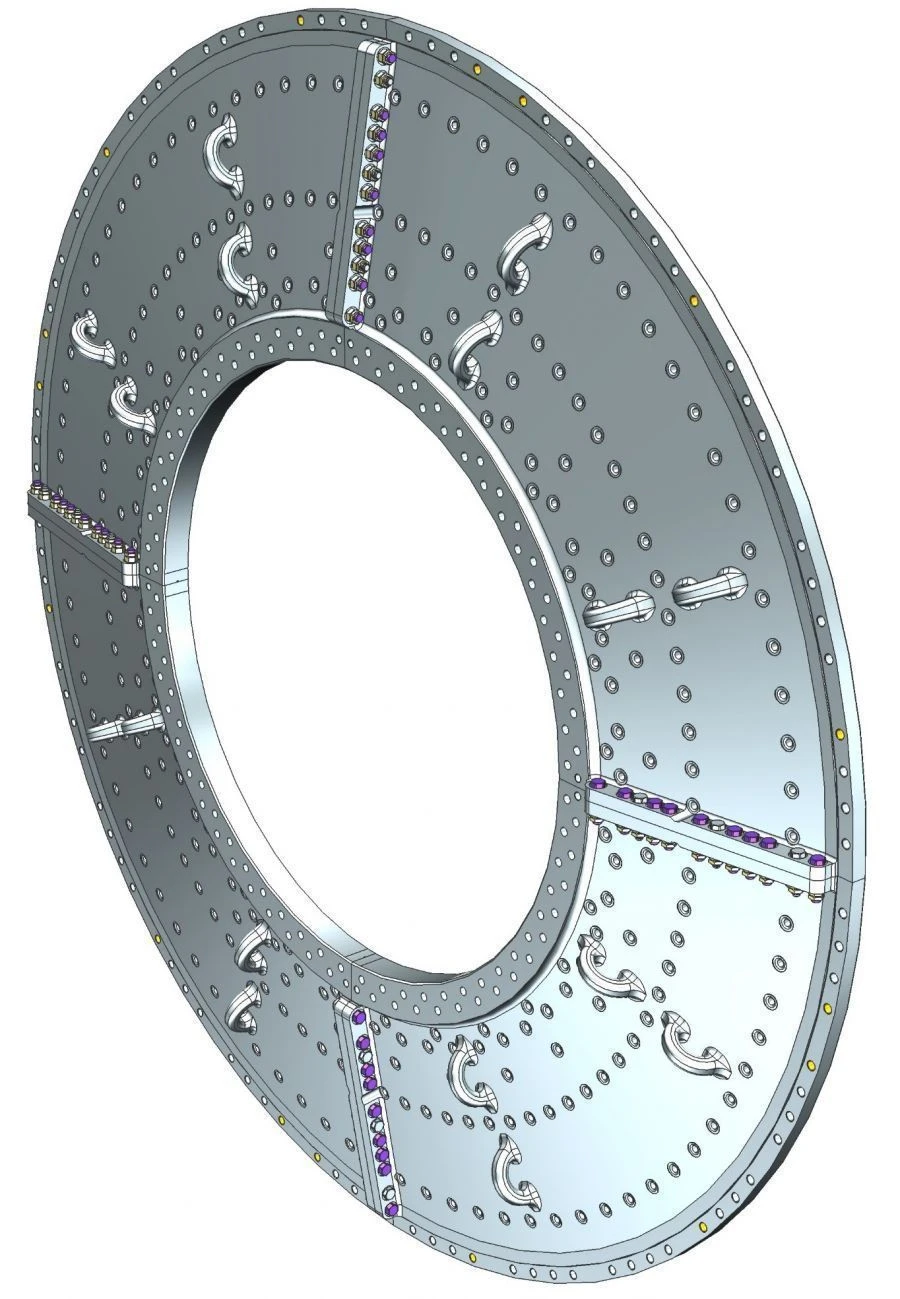

Discharge Wall Assembly 1340.04.010 for Mill Drum Applications

The end discharge wall is a housing assembly made in the form of a cone flange with a conicity angle of 7 degrees; it serves as an end part of the mill drum; the discharge wall is connected on one side with the discharge trunnion, on the other side with the drum body and the gear ring of the mill drive; to prevent abrasive wear of the inner surface of the wall, it is lined with moulded protective elements (liners); the rotating part of the mill is supported by a roller bearing on the discharge side through the trunnion of the discharge wall
