Distributed Temperature Measurement Cable Assembly for Pressure Sensors RSTD.416739.001 - Efficient Monitoring Solutions

Designed for power supply to temperature and pressure sensors, signal transmission in submersible telemetry systems, distributed parameter monitoring (DTS, DAS), continuous monitoring of events in the well. The cable contains a central steel optical module with loosely laid optical fibres. The free space in the module is filled with hydrophobic gel.

A conductive conductive wire (CCF) is superimposed on top of the steel module. Polypropylene copolymer insulation is applied on top of the conductor core. A buffer layer of polypropylene copolymer is placed on top of the insulation.

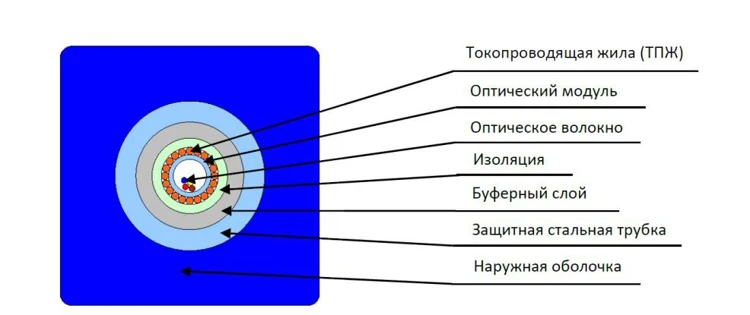

On top of the buffer layer is steel tape armour. The cable contains a central optical module (steel sealed tube with optical fibres, filled with gel), on top of which a multiwire tinned conductive core (TPC) insulated with fluoropolymer is applied. A buffer layer is applied over the insulation of the conductor core.

A protective steel hermetic tube is placed on top of the buffer layer.
