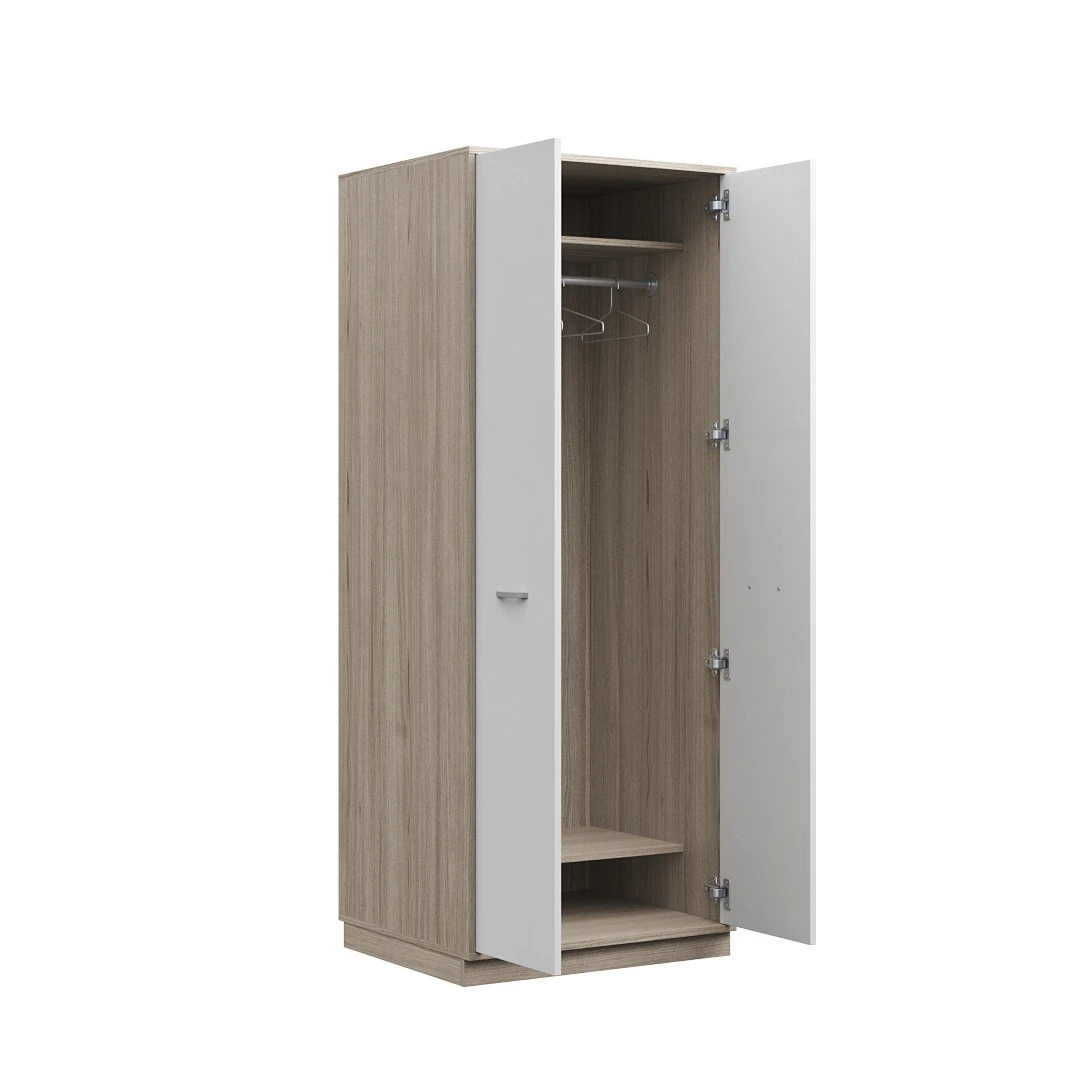

Double-Door Wardrobe Storage System SGD Series for Organized Spaces

Dimensional size (wdh) 7885762046 mm. The frame consists of the bottom, top, sides, shelves, made of 16 mm LDFP. Edging on the frame elements is 0.4 mm.

The material for the facade is made of 16 mm chipboard. PVC edging 2 mm around the perimeter. Four-hinged hinges.

Hinge cup diameter 35 mm. Hinges with inbuilt adjustments: overlap adjustment, depth adjustment, height adjustment. Hinge opening angle of 108 degrees.

Rear wall 3.2 mm CDF. The back wall is set in a groove at a depth of 16 mm. The handles are steel.

Handles positioned horizontally in the centre of the facade. The base frame block is made of 16 mm LDF. The adjustable supports are two-component.

They consist of a hammered steel sleeve with a height of 17 mm and an external diameter of 8 mm with an internal thread for M6, and an adjustable support with a thread length of 17 mm, a diameter of 6 mm and a plastic footrest. The height of the plastic footrest is 8.5 mm and the diameter of the base is 17 mm. The depth of the plinth frame block is 526 mm..
