Dry Transformer TS 100/6(10)/0.4 for Reliable Energy Supply in Moderate Climates

High-Power Electrical Transformers

Manufacturer: ZEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Dry-type transformer TS 1000/6(10)/0,4 Dry-type transformer TS 160/6(10)/0,4 Dry-type transformer TS 1600/6(10)/0,4 Dry-type transformer TS 400/6(10)/0,4 Dry-type transformer TS 3150/6(10)/0,4

Dry-type transformer TS 630/6(10)/0,4 Dry-type transformer TS 250/6(10)/0,4

Description

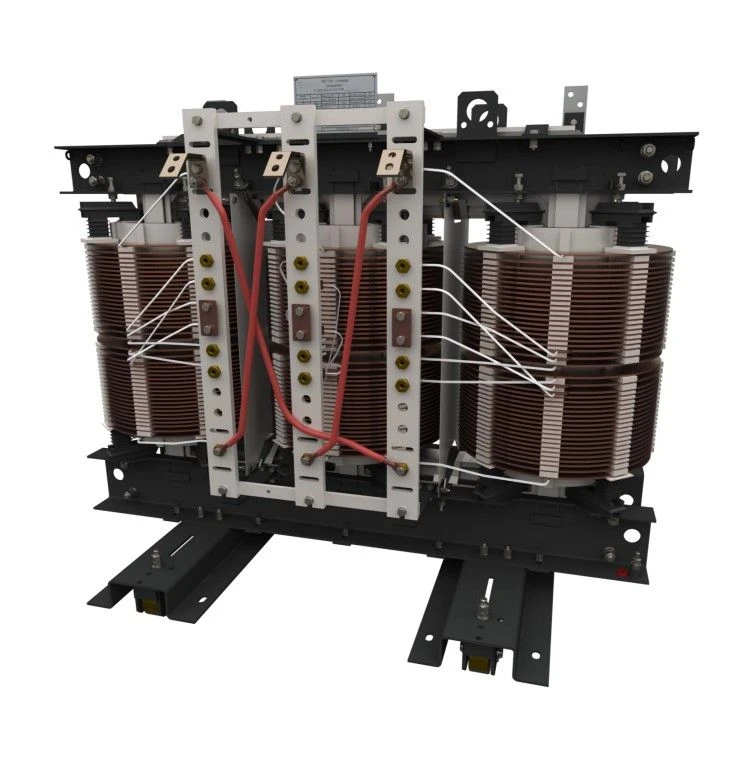

Transformers of TC series for voltage 6,10 kV are designed for supply of electric power to general purpose consumers. electric power supply to consumers of general purpose. Transformers are designed for operation in areas with temperate climate for operation under a canopy or indoors (version U3 according to GOST 15150). Windings are multilayer, cylindrical, made of aluminium (copper) wire of rectangular (round) cross-section with glass fibre insulation and impregnated with organosilicon varnish, with a surface varnish layer. The interlayer insulation is made of glass fibre reinforced plastic. Magnetoconductor of the transformer with air-barrier insulation is made of anisotropic steel with electrical insulating coating, low specific losses, according to "Unicore" technology, due to which a significant reduction of no-load losses and noise level is achieved.

Specifications

Transformer type

Reducing

Type of insulation

Dry

Possibility of regulation under voltage

Rated power

100

Number of windings

Number of transformer phases

Length

980 mm

Width

600 mm

Height

1045 mm

Nominal voltage

6...10

Type

Model

Mains voltage

6...10 kV

Dimensions (DxWxH), mm

980*600*1045

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
