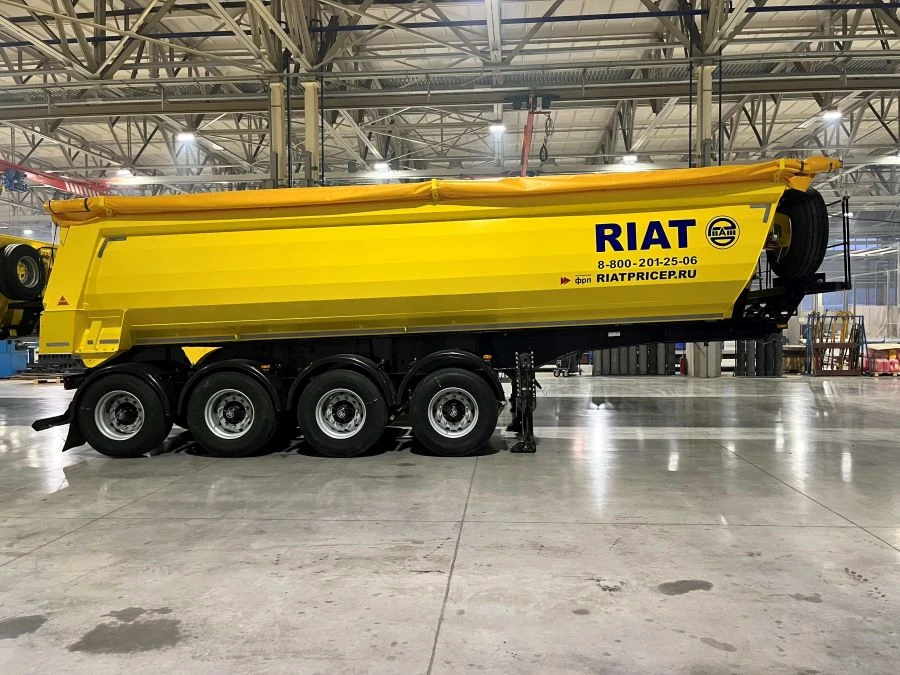

Dump Semi-Trailer 924940 - Ideal for Heavy Loads and Construction

Semi-trailer - tipper, modification 924940, configuration 924940-33H1. Overall dimensions of the semi-trailer (DxWxH): 10 530x2550x3340mm. Internal dimensions of the body (DxWxH): 8960x2290x1615 mm.

Cargo volume, 33 cubic metres. Mass indicators: Curb weight of the trailer: 9750 kg. Payload: 42750kg.

GVW: 52500kg. GVW load: 12,500kg. Bogie load: 40,000kg.

TMS height: 1200/1300 mm. Unloading direction: Backwards. Platform lift angle: 4547.

Track: 2045 mm. The omega-shaped cross-section of the platform ensures a lower centre of gravity of the loaded semi-trailer compared to other types of HALF-PIPE cross-sections. The tipping axis of the platform on the frame is located with a slight offset from the axis of the suspension pneumatic springs attachment to the frame.

This increases the stability of the semi-trailer when unloading. Increased service life of the semitrailer metal structure due to the use of high-strength steels.
