Electric Equipment Monitoring and Diagnostics System SKDEV-02 for Enhanced Performance

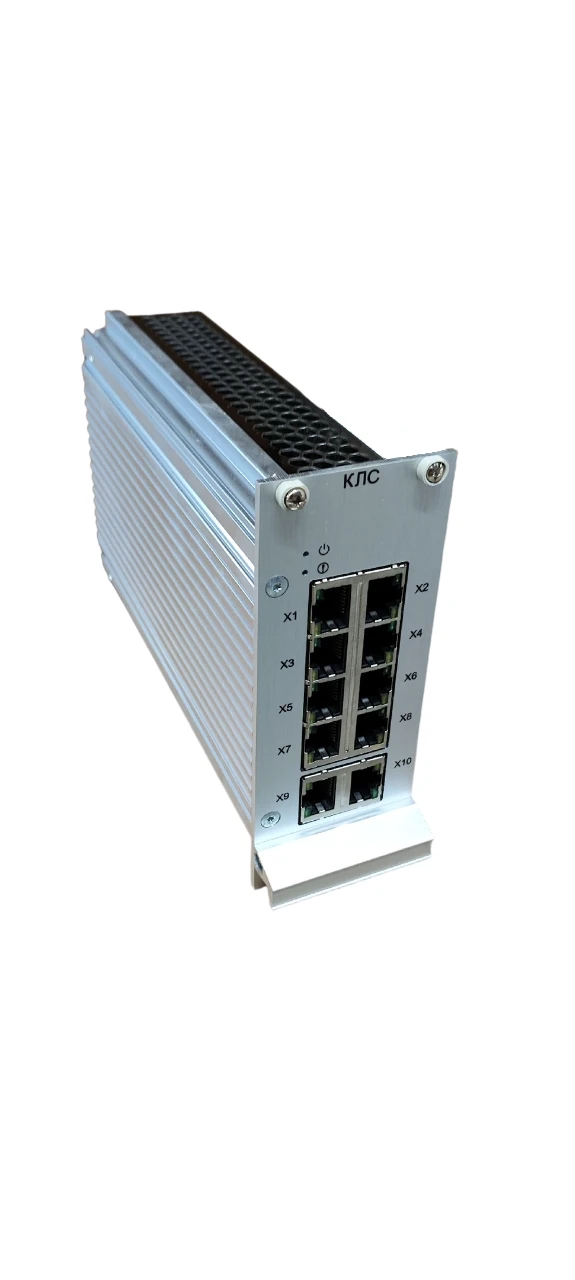

SKDEV-02 is an industrial gigabit managed local area network switch (hereinafter referred to as CLS), designed to collect, process information from electrical equipment. It is designed for operation as a part of industrial local networks both for general purpose and transport. CLS is equipped with ports operating at the speed of 10/100/1000 Mbit/s.

Each port has a light indication: Link/Act. The CLS can automatically reduce the connection speed to 100Mbit when connecting only two pairs of wires. Managed switches allow you to create a network, protected from loops and breaks, and the network with the topology of the ring, thanks to support for RSTP and LACP protocols, to carry out automated configuration using SNMP protocol, and manual flexible configuration through a convenient web-interface.

In addition to configuration, the Web-interface provides the ability to save and download its configuration to a file, and also displays the network topology if all switches in the network support LLDP and SNMP protocols.
