Electric Hydraulic Actuators for Ball Valves DN300-1400 PN up to 16MPa - Remote and Local Control

Hydraulic Actuators

Manufacturer: TECHPROM-NGS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: Actuators are designed for remote and local control of shut-off valves (part-turn ball valves), as well as for signalling to the control panel about the valve gate position.
Description: The actuator provides repositioning of the valve gate at remote and local control.

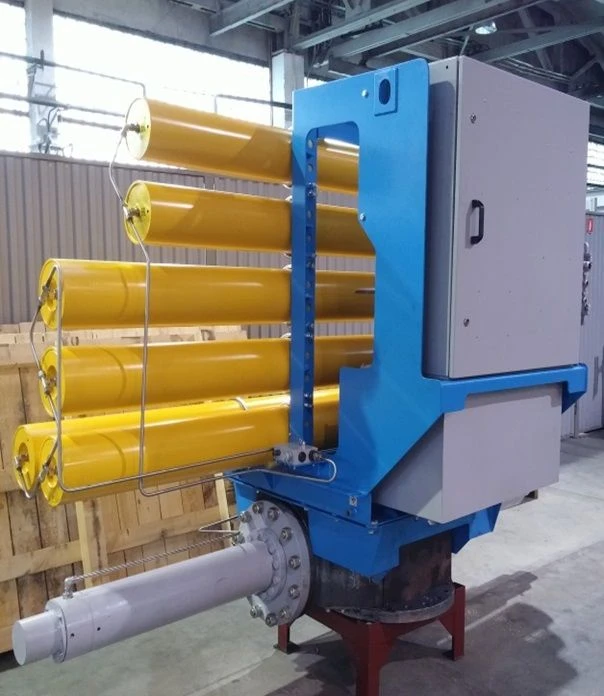

Structurally, the actuator consists of the following elements mounted on a single frame:

- hydraulic actuator with a rocker arm swing mechanism;
electro-hydraulic control system;
pump unit;
pneumohydraulic piston accumulator or hydraulic accumulator station (hydraulic accumulators + receivers);
manual pump;
working fluid tank.

The actuators function from the pressure energy of the working fluid:

- accumulated in the accumulator tank;
created by the pump unit;
generated by the hand pump - double-acting pump.

3. technical characteristics/ Value:

- Maximum working pressure in the hydraulic system, MPa: 22;
Minimum working pressure in the hydraulic system, MPa: 22; Minimum working pressure ...

Specifications

Maximum working pressure in the hydraulic system, MPa:

22 MPa

Minimum working pressure in hydraulic system, MPa

19 MPa

Number of batteries installed on the drive, pcs.

2 pcs

Volume of accumulators, litres

60 l

Number of receivers to be installed on the actuator, pcs.

4 pcs

Volume of receiver, litres

75 l

Working fluid tank volume, litres

145 l

Weight of actuator (dry), kg, not more

5060 kg
