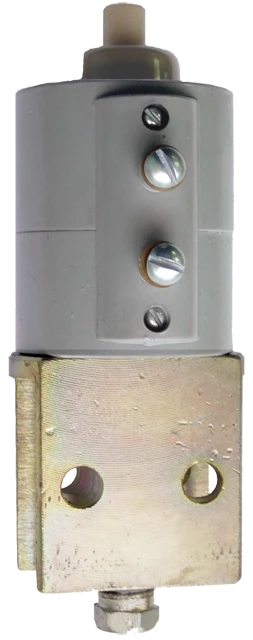

Electric Pneumatic Valve VV-1315 U3 for Efficient Remote Control of Pneumatic Drives

Electropneumatic valve BB-1315 U3 is designed for remote control of pneumatic actuators Basic technical data: Valve type???-1315 Rated DC voltage, V75, 110 Nominal pressure of compressed air, MPa 0,63 Inlet valve air passage cross-sectional area, sq.mm10 Air passage cross-sectional area of the exhaust valve, sq.mm16 Power consumption, not more than, W14 Stroke of valve system, mm1,5 ± 0,1 Weight, kg ±5%1,23
