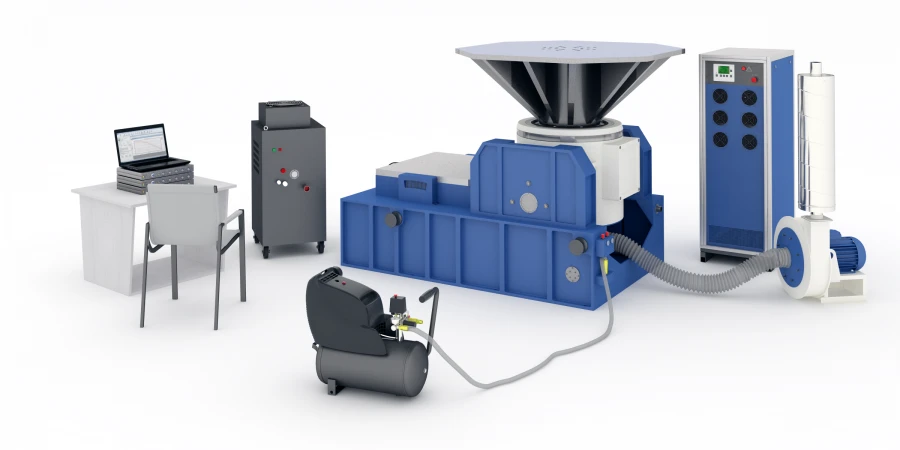

Electrodynamic Vibration Test System VSV-203-150 GSS for Reliable Testing Applications

Electrodynamic vibration test rig Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration. Design features table diameter 150 mm., horizontal table (GSS 300, GSS 400, GSS 500, GSS 600, GSS 700), frequency range 5-3300 Hz, displacement (amplitude) at zero load not less than 20 mm., acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 3kN., mass (maximum) load 120 kg. Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position of the development of LLC "Rostovskaya Technika", power amplifier (modules, controller) development and production of LLC "Rostovskaya Technika", amplifier control software developed by LLC "Rostovskaya Technika"
