Electromagnetic Actuated Vacuum Circuit Breaker VVE-M-10-20(31.5)/630-2000 U3Available for Import

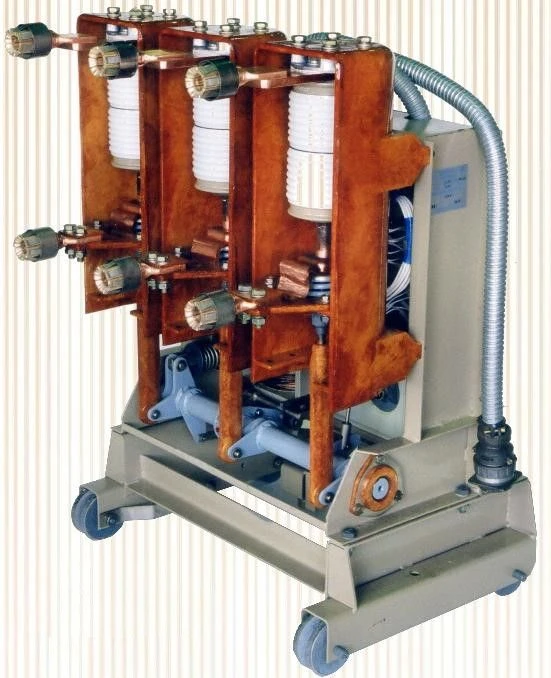

Electromagnetic Actuated Vacuum Circuit Breaker VVE-M-10-20 for KRU Applications

High Voltage AC Switches
Manufacturer:ELKO LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Series VVE-M-TU 16-90 INLYA.674152.009TU vacuum circuit breaker with electromagnetic drive. Modification M in roll-out version is used for installation in switchgear type K-47 (49, 59), K-104M (105), KM-1, KMV and similar to them. They are used for replacement of previously installed and exhausted switching resource low-oil circuit breakers type VK (VKE)-10, VKE-M-10.

Specifications

Length
623 mm
Width
623 mm
Height
828 mm
Availability of built-in controls
Control unit, trip units
Depth
593 mm
Mark
VVE-M
Current type of control coil
permanent
Block pins
Got it
Engine
no
Control coil voltage
220? V
Poles
3 pieces
Drive
Electromagnetic
Voltage
10 kV
Joining
Armoured glass
Reversibility
no
Degree of protection according to GOST 14254-96
IP63
Control circuit current type
permanent
Number of auxiliary circuit contacts
7 normally closed, 7 normally open
Type of climatic version according to GOST 15150-69
?3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
