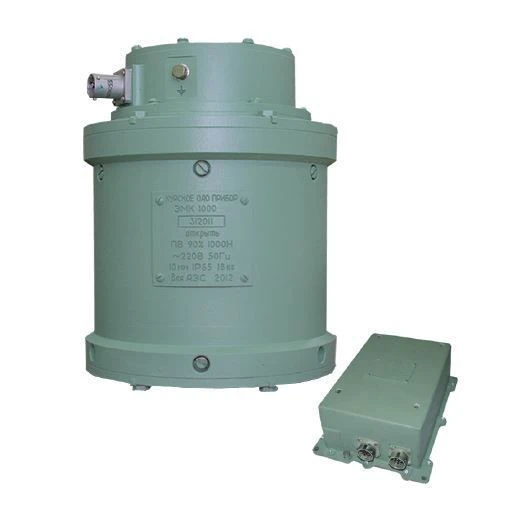

Electromagnetic Actuator EMK1000DVO for Safety and Control Applications

The electromagnetic actuator EMK1000DVO has a Certificate of Conformity obtained in the OIT system. The actuator is designed to complete the valves complying with the requirements of NP068-05 (safety class 2 (or 3, or 4) according to NP-001-97). The actuator functions together with the power supply unit (PSU) included in the actuator delivery set and is designed for operation in the hermetic zone, while the PSU - outside the hermetic zone.

Placement in the zone of free access according to SanPin 2.6.1.24-03, the category of the room on explosion and fire hazard - B2 according to NPB-105. Ambient temperature from minus 10 to +60°?, in the mode of heat dissipation disturbance - up to + 75°?, in the emergency mode "small leak" - up to +90°?, in the emergency mode "big leak" - up to +150°?. External surfaces of EMC and BP are resistant to decontamination solution of composition 7 according to NP-068-05.
