Emergency Activation Block for Cathodic Protection Station BVR-SKZ-220/100MK Available for Import

Emergency Activation Block for Cathodic Protection Station BVR-SKZ-220/100MK - Reliable Monitoring Solution

Low-Voltage Electrical Panels
Manufacturer: TD ROBITEX LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

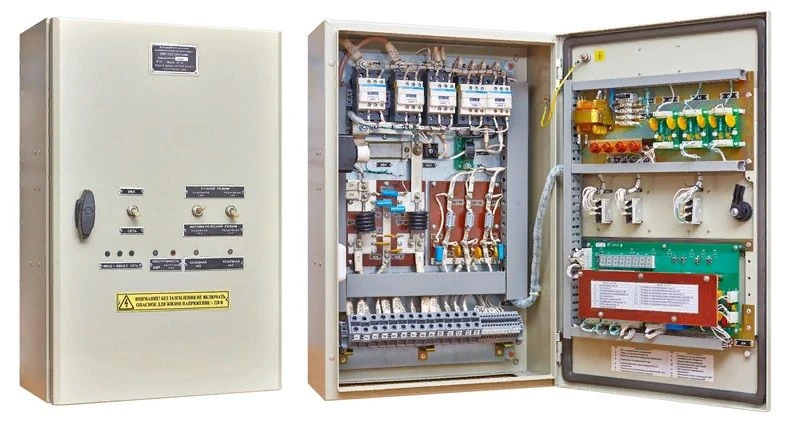

BVR-SKZ-220/100MK is designed for continuous monitoring of serviceability of the main station of cathodic protection by analysing the values and form of input and output voltages and currents by the built-in microprocessor. In case of detection of failure of electrical parameters of the main cathodic protection station, the BVR automatically disconnects the main station and connects the reserve station. The BVR-SKZ-220/100MK can operate from two independent power inputs. BVR-SKZ-222/100MK is designed to work with all types of ACS used in PJSC Gazprom

Specifications

Power supply voltage
220 V
Consumption power
30 W
Maximum pipe-to-anode voltage
100 V
Maximum current in Tube-Anode circuit
100 A
ACS circuit mismatch analysis
See specifications
Climatic version
?2
Degree of protection
IP31
Housing material
Metal
Height
600 mm
Width
400 mm
