Emergency Switching Point for Self-Rescuers PPS Mob-MS-30/4 - Safeguard Against Hazardous Atmospheres

Special Purpose Equipment

Manufacturer: REMPORTS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Switching point to self-rescuers PPP Mob-MS-102/10 Switchover point to self-rescuers PPF Mob-MS-12/1 Switchover point for MB-MS-78/8 self-rescuers

Description

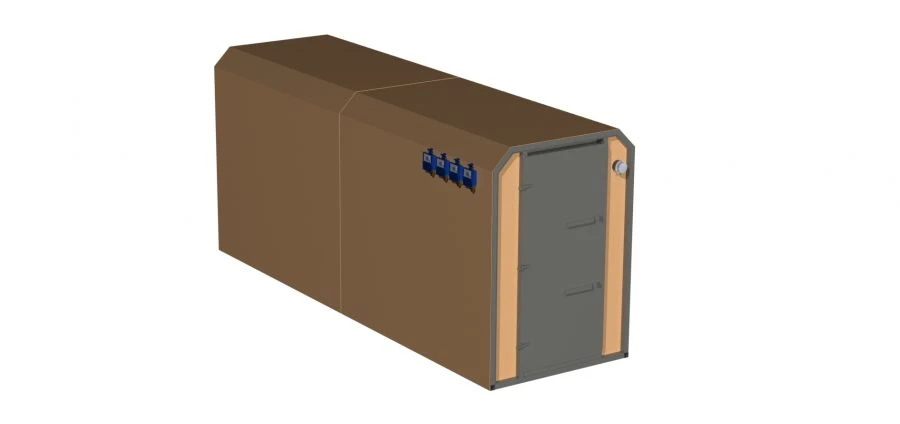

PPS are designed to store reserve self-rescuers and protect people from the harmful factors of the mine atmosphere when switching to reserve self-rescuers in emergency situations when leaving remote areas, as well as for shelter and rest mountain rescuers during the elimination of accidents in underground workings of mines and mines, including dangerous by gas and dust. PPPs belong to the rescue equipment and are an autonomous technical device. The main purpose is to protect miners from the harmful effects of the mine atmosphere during an accident. The harmful factors of the mine atmosphere include gases from explosions, smoke, suspended coal dust. CCPs are prefabricated metal structures of modular type: inlet module, outlet module and intermediate modules. All modules are connected hermetically with the help of a sealant, end modules (inlet and outlet) have hermetically closing doors.

Specifications

Service life, at least

5 year

Ambient temperature range for operating the NTC

-5...50 °C

Relative humidity range of atmospheric air, % (with condensation)

15...100 %

Atmospheric pressure

84...106.7

Overall dimensions of one module (DxWxH), not more than

2100 mm

Weight of input module, not more

1100 kg

Output module mass, not more

1100 kg

Weight of intermediate module, not more

900 kg

Number of switching operations

30 pcs

Number of simultaneous switching places

4 pcs

Volume of air reserve in one cylinder

5.6

Duration of autonomous operation, not less

Flat grinder, Specialised grinder

Explosion protection marking

I Mb c X

The value of resistance of the PPP structure to shock wave pressure in an emergency, not less than

0,1 MPa

Overpressure in the blowing chamber, not less than

100

Degree of protection against external influences according to GOST 14254-2014

IP54

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
