Emerlink Mini Encoder for Video and Audio Transmission - Compact and Portable

Real-Time Media Devices

Manufacturer:EMERGINK LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

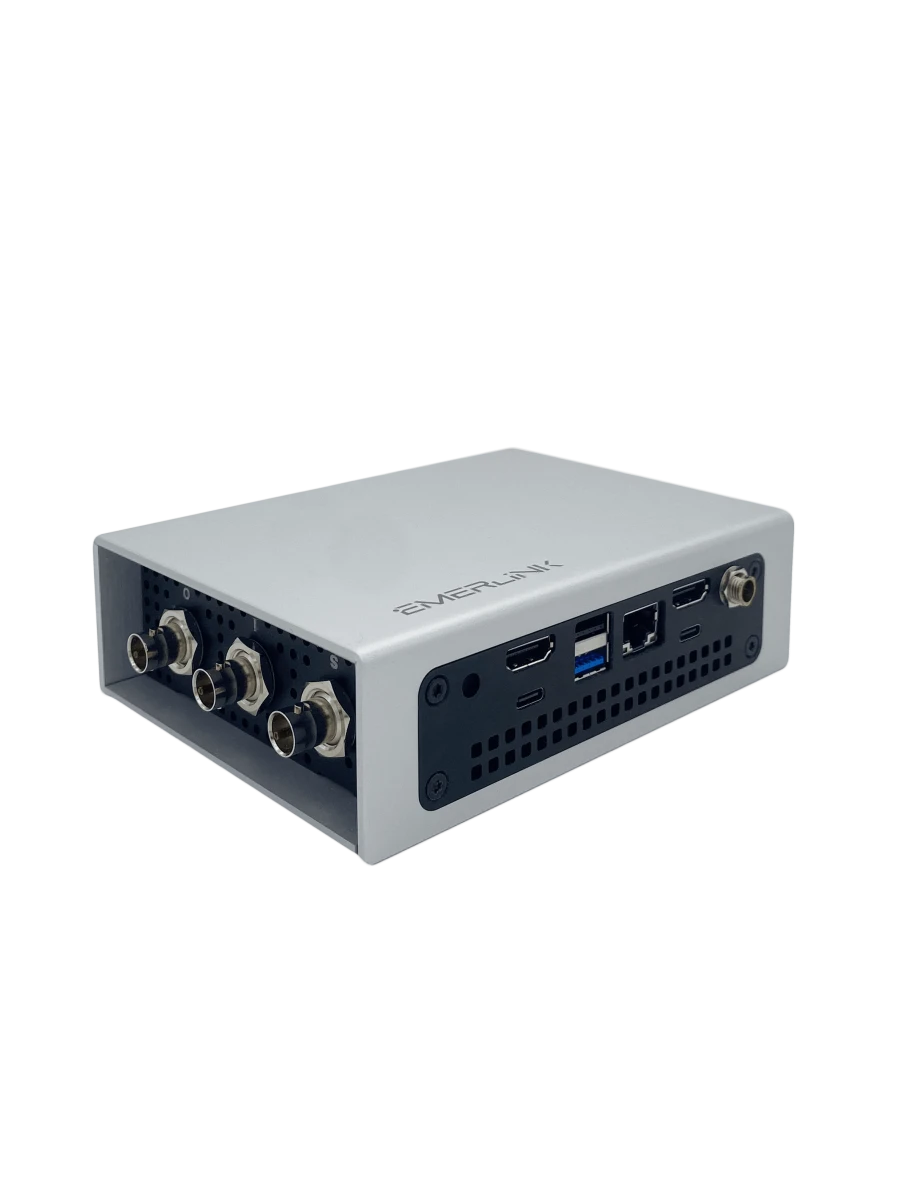

The Emerlink Emerlink Encoder Mini is characterised by its compact size . A portable device, it is designed to transmit video and audio information over networks with non-guaranteed bandwidth.

Specifications

DC supply voltage

12...19 V

Power consumption, max.

SBVVBG W

External connectors

Audio Jack 3,5mm Stereo+Microphone, 4 USB 3.0, Type-C, 3 SDI (BNC), RJ-45, HDMI, DC IN 2.1-5.5mm jack

Supported communication standards

Ethernet 10/100/1000 Mbps

Operating temperature range

0...40 °C

Storage temperature

-30...60 °C

Overall dimensions without fasteners, including tolerance, (L x H x W), mm

130x112x47

Weight, not more

0.31 kg

Supported SD formats

525i/59,94 NTSC; 625i/50 PAL

Supported HD formats

1080i/50/59,94/60

SDI colour resolution

8 and 10 bit YUV (4:2:2)

SDI interface

In accordance with standards SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.601 and ITU-R BT.656

Supported video codecs

MPEG-2, H.264/MPEG-4 AVC, H.265/HEVC

Supported audio codecs

MPEG-1 Layer 2, MPEG-4 AAC

Additional features

Support ANSI/SCTE-35 tagging, Support ISO/IEC 13818-1 teletext

Supported network transmission protocols

UDP, RTP, PRO (optional)

Error correction

FEC

Encoding delay

Low Delay, UltraLow Delay

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
