Estus Dental Complex for Dental Procedures - GE43E-ESTUS

Dental Tools and Devices

Manufacturer: GEOSOFT DENT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

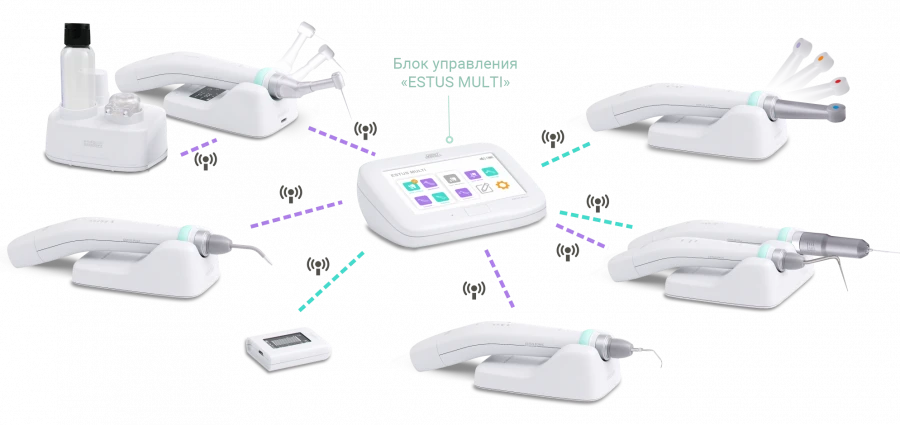

The Estus dental unit is designed for dental procedures and consists of the following individual products and systems: - "Estus Drive" endodontic system for preparation and cleaning of tooth root canals", - System for three-dimensional obturation of tooth root canals with heated gutta-percha "Estus Pack-Fill", - Apparatus for electroodontodiagnostics of tooth pulp "Estus Pulp", - Estus Light dental photoactivator, - Estus Sonic endodontic ultrasonic scaler, - Estus Apex apparatus for localisation of apical narrowing of the root canal, connected by radio channel with Estus Multi control unit. Thanks to the connection with the Estus Multi control unit, it is possible to expand the functionality of the above mentioned products, simplify the process of their adjustment and realise a clearer indication of their operating parameters. Data reception and transmission between "Estus Multi" and other devices of the "Estus" complex is carried out via radio channel.

Specifications

Parameters of the charging station power supply unit

Input voltage (100-240) V, ~50/60Hz, Output voltage 5V; max. 2,4?.

Dimensions / weight of the Estus Two-B stand

(102*100*40) 3 mm / 155 g.

Overall dimensions / weight of the charging station "Estus Energy-D"

(87*56*49) 3 mm/ 145 g.

Estus Multi control unit display

Touch - TFT-LCD (5, 800x480px resolution)

Power supply for Estus Multi control unit

Li-Ro battery (3.7V; 4100mAh)

Dimensions/weight of Estus Multi control unit

(147*100*56) 3 mm / 235 g.

Additional functions for Estus Apex and Estus Multi apex locators

Function "Label setting", Function for correcting the readings depending on the type of irrigant, Adjustment of the apical stop position

Estus Apex Apex Locator Display

OLED type (1,3)

Measuring range of Estus Apex and Estus Multi apex locators

3 - 0 mm

Power supply for Estus Apex-locator Apex

Li-Ro battery (3.7V; 250mAh)

Dimensions / weight of Estus Apex locator

(53*39*13) 3 mm / 20 g.

Radiation spectrum of the LUMI nozzle

400-420 nm (405 nm peak)

Radiation spectrum of the ORANGE nozzle

585-595 nm

Radiation spectrum of the BLUE POINT nozzle

440-475 nm

Radiation spectrum of the FULL BLUE nozzle

400-475 nm

Brightness of Estus Light with ORANGE and LUMI attachments

9 levels

Estus Light exposure time with FULL-BLUE and BLUE POINT attachments

1 - 25 sec (step 1 sec)

Energy luminosity of Estus Light with FULL-BLUE and BLUE POINT nozzles

1500 - 3500 mW/cm2 (step 100 mW/cm2)

Dimensions / weight of Estus Light tip

(215*33*43) 3 mm / 90 g.

Range of "diagnostic" current in Estus Pulp mode

0-80 µA (step 1 µA)

Dimensions / weight of Estus Pulp handpiece

(202*33*43) 3 mm /85 g.

Maximum duration of Estus Pack heating cycle followed by automatic shutdown in modes

- gutta-percha cutting "CUT" - 10 sec. - condensation of gutta-percha "PACK" - 20 sec - thermal activation of irrigant "MIX" - 120 sec.

Dimensions / weight of the Estus Fill handpiece

(240*33*43) 3 mm/ 115 g.

Dimensions / weight of Estus Pack handpiece

(207*33*43) 3 mm / 80 g.

Overall dimensions / weight of the Estus Sonic tip

(181*33*43) 3 mm / 110 g

Frequency range of ultrasonic vibrations of Estus Sonic endoscaler

32 - 43 kHz

Power of Estus Sonic endoscaler ultrasonic oscillator generator

In modes: "H + SCAN" - 4W, "H" - 5W, "M" - 3W, "L" - 1,5W.

Communication between all components of the complex via radio channel

2.4-2.525 GHz, max. output power - +7 dBm, range - up to 3 m in line of sight

Power supply for Estus Drive, Estus Pack, Estus Fill, Estus Pulp, Estus Light, Estus Sonic and Estus Pump handpieces

Li-Ro battery pack (2x3.7V; 800mAh)

Rotational speed of Estus Drive endomotor with RT head

200...1200

Estus Drive endomotor torque limit with RT head

0.2 - 5.1 Ncm

Angle of clockwise/counterclockwise reciprocal rotation in Estus Drive endomotor when operating with RT head

10...360

Rotational speed of Estus Drive endomotor with SAF head

3500...9500

Endomotor rotation speed Estus Drive with GF head

3000...9000

Dimensions / weight of Estus Drive handpiece

(210*33*51) 3 mm / 140 g.

Working capacity of Estus Pump

1 to 5 ml/minute

Dimensions / weight of Estus Pump

(118*100*60) 3 mm / 155 g.

Operating temperature of Estus Pack plugger in modes

- gutta-percha cutting "CUT" - 170 +/- 10 degrees centigrade; - gutta-percha condensation "PACK" - (80-120) +/- 10 degrees centigrade; - thermal activation of irrigant "MIX" - 50 +/- 5 degrees centigrade.

Operating temperature of Estus Fill injector

160...200 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
