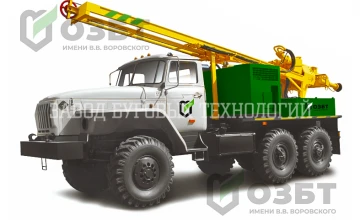

Exploration Drilling Rig URB on Ural-5557 Chassis for Efficient Drilling

Special Purpose Vehicles

Manufacturer: ZBT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The URB drilling rig is designed for exploratory drilling. It is worth noting that this particular rig has long since passed into the category of legendary among drillers and is in demand among consumers around the world. Engineering surveys, search for minerals and water horizons, drilling for construction purposes - it can do it all. The rig can work as a continuous bottom hole by cone, auger and pneumatic percussion method as well as a circular bottom hole by core drilling method. It works with a rotary type bit, however, if desired, it is possible to connect an auger unit. At auger drilling is used for not very large depths - 30-50 metres, the maximum depth of structural prospecting wells drilled by such a unit - 300-350 metres, geophysical wells with flushing 100 metres, and geophysical wells with blowing 30-50m.

Specifications

Type of product according to PP RF 616

Special purpose motor vehicles other, not included in other groupings

Transmission type

mechanical

Engine type

Diesel

Side panel design

Rear wall design

Superstructure material

Metal

Additional option

Drilling depth, m, geophysical boreholes-100, structural boreholes-300, at bottom-hole blowing with air-30, at auger drilling-30. initial drilling diameter; mm -190

Vehicle kerb weight

15870 kg

Base chassis

Ural-5557

locking mechanism

Length

8250 mm

Width

2500 mm

Height

3700 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
