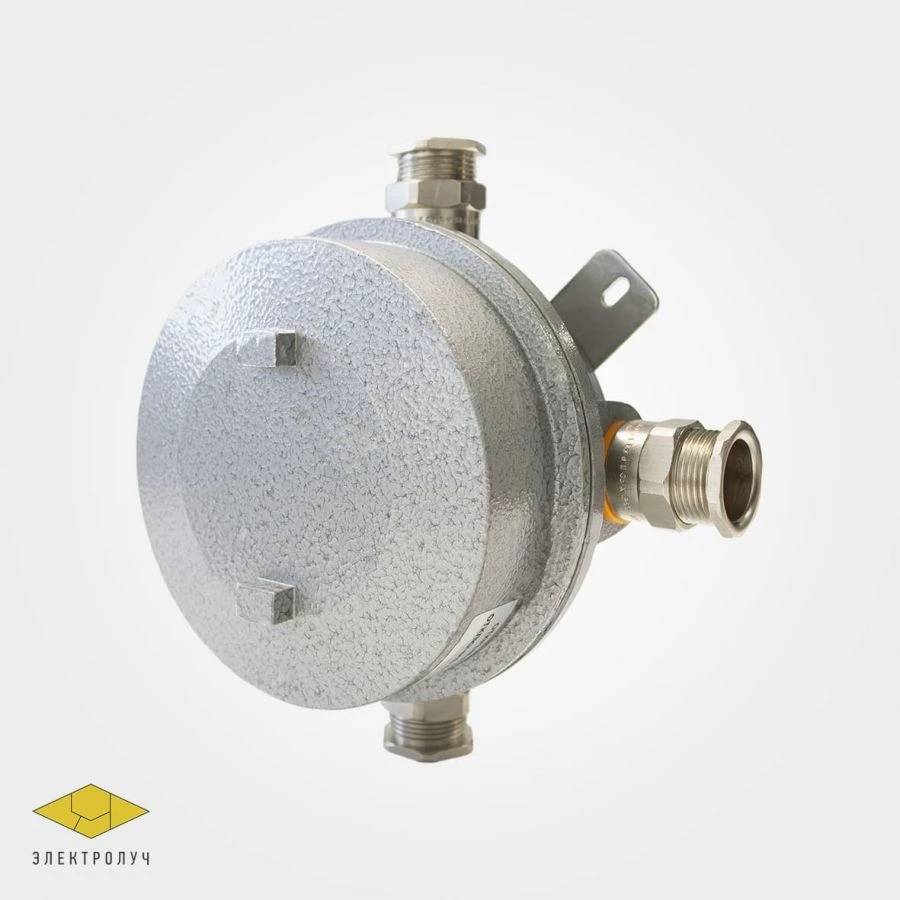

Explosion-Proof Distribution Box KR-V110 for Hazardous Areas

Electrical Circuit Protection

Manufacturer: ELEKTROLUCH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Explosion-proof distribution boxes KR-V110 are designed for making connections and branches of cable wiring laid in premises and outdoor installations in hazardous areas of classes 1 and 2 according to GOST R 52350.10, GOST R 52350.14 and other regulatory documents governing the use of explosion-proof electrical equipment. KR-B110 boxes are compact, easy to use, designed for connection of cables with cross-section up to 4 mm2. Fastening to the wall is carried out on the holes in the body flanges with two M6 bolts.

Explosion-proof box KR-B110 is supplied both complete with various cable glands and without them (the holes are closed with explosion-proof plugs). The set can also include a stationary terminal block of spring type WAGO or analogue, various types of explosion-proof cable glands and plugs.

Specifications

Crimped cable range

20S16, 20S, 20, 25

Type of cable routing

Open laying, in metal sleeve, armoured cable, armoured cable laid in pipe.

Rated supply voltage

500 V

Rated current

32 A

Maximum cable cross section

4 mm²

Number of cable glands

1...4 pcs

Protection class against electric current

I class according to GOST 12.2.007.0

Housing material

Aluminum alloy with magnesium content less than 7.5 %

Mounting method

Wall mounting, ceiling mounting

Operating temperature conditions

-60...55 °C

Climatic version

UHL1

Degree of protection IP

IP66

Length

140 mm

Width

150 mm

Height

Flat grinder, Specialised grinder mm

Net weight

4.6 kg

Gross weight

5.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
