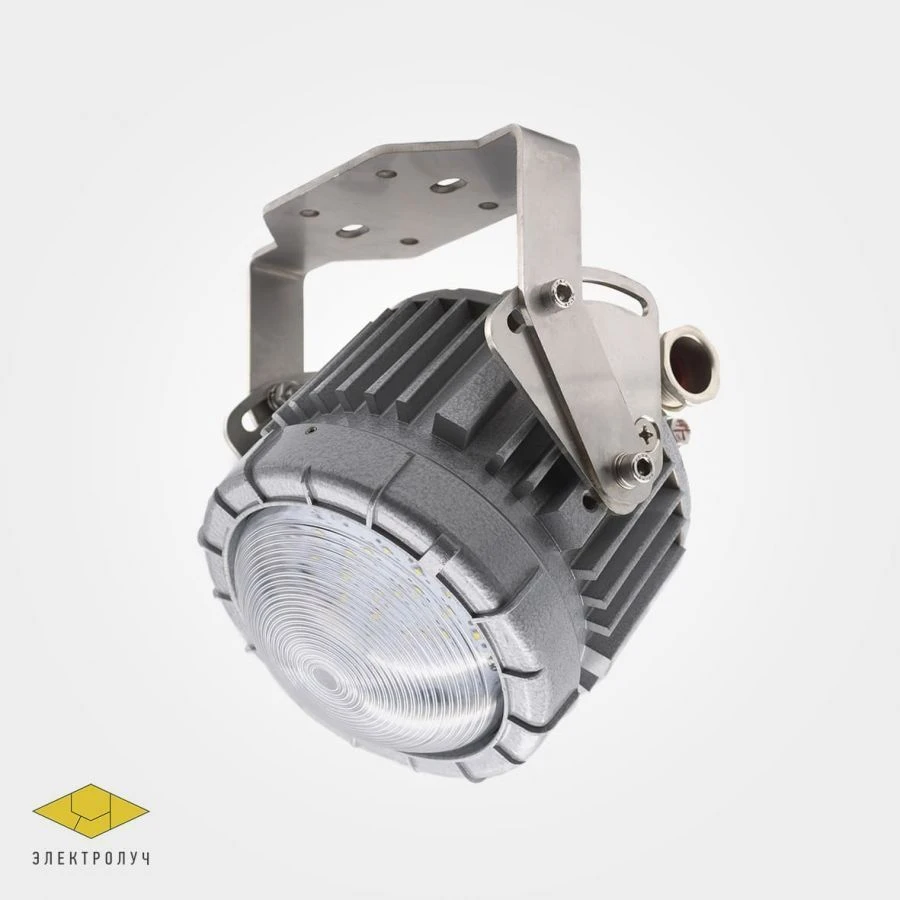

Explosion-Proof LED Light V3G-200AMS-SD-20/Klever for Industrial & Outdoor Use

Advanced LED Lighting

Manufacturer: ELEKTROLUCH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The luminaires are designed for outdoor and indoor lighting of industrial, production facilities, open areas and other areas where the presence of explosive atmospheres is possible. The power of the product is 20 W. The luminaires are designed for operation in networks with nominal voltage of alternating current - 230, 127 V AC.

The luminaire has several types of mounting (installation): pipe mounting, swivel bracket, bar, eyebolt, cable suspension, portable bracket, etc. The luminaire has several types of diffusers: polycarbonate, borosilicate glass, etc. LED modules installed in the product are designed on the basis of LEDs of LLC "Production Company "Klever".

The design of the luminaire allows to realise both dead-end and transit cable installation. The luminaires can be operated in the temperature range from - 60C to +55C. Climatic design and placement category according to GOST 15150: U1, UHL1, OM1.

Degree of protection IP: 66, 67, 68.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Degree of protection (IP)

IP66; IP67; IP68

Operating temperature conditions

-60...55 °C

Power consumption

20 W

Type of supply current

Power factor

0.95

Protection class against electric current

Grade I

Luminous flux

2600 lm

Pulsation factor

1 %

Correlated color temperature

5000 K

CRI color rendering index

Housing material

Aluminum alloy with magnesium content less than 7.5 %

Climatic version

U1; UHL1; OM1

Length

150...440 mm

Width

150...250 mm

Height

175...420 mm

Net weight

3...5.2 kg

Gross weight

3.3...5.5 kg

Input voltage

127 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
