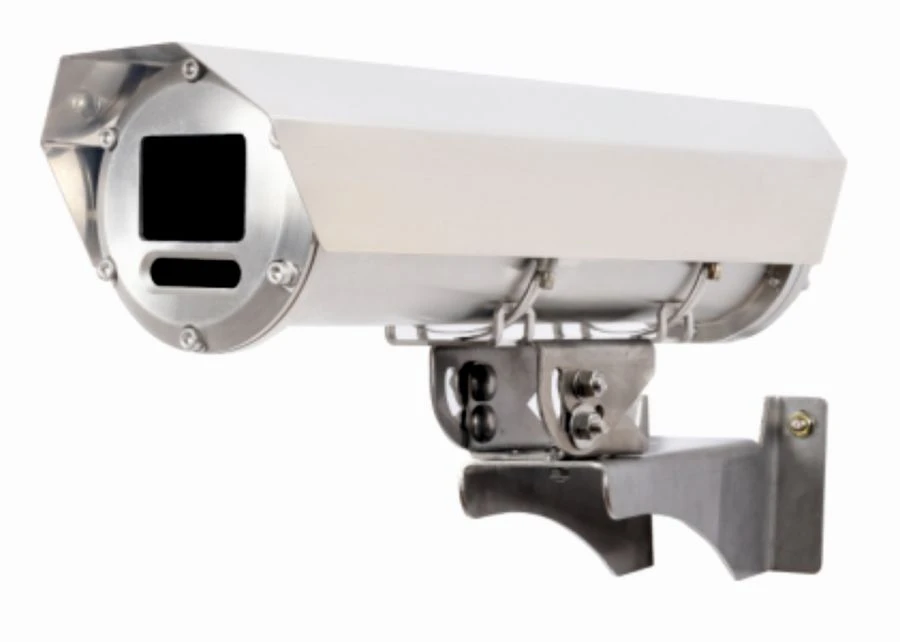

Explosion-Proof Thermal Cover ZonEx-TK-Exd-M30-IR-220 VAC

Available for Import

Explosion-Proof Thermal Cover ZonEx-TK-Exd-M30 for Cameras in Hazardous Areas

Security System Components

Manufacturer: ZONEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Thermal housing Zonex-TK-M30-LE-12 VDC ?????????? ??????-??-?40-IR-PoE Thermal housing Zonex-TK-M40-LE-24-36 VDC/VAC Thermal housing explosion-proof Zonex-TK-Exd-M30-LE-24-36 VDC/VAC ?????????? ??????-??-?40-PoE

Thermal housing Zonex-TK-M40-IR-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M40-LE-24-36 VDC/VAC Thermal housing Zonex-TK-M40-24-36 VDC/VAC Thermal housing Zonex-TK-M30-IR-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M30-IR-24-36 VDC/VAC Thermal housing explosion-proof Zonex-TK-Exd-M40-LE-PoE Thermal housing explosion-proof Zonex-TK-Exd-M40-IR-PoE Thermal housing Zonex-TK-M30-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M30-LE-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M30-12 VDC Thermal housing Zonex-TK-M30-LE-220 VAC ?????????? ??????-??-?30-PoE Thermal cover Zonex-TK-M40-IR-24-36 VDC/VAC Thermal housing Zonex-TK-M30-IR-24-36 VDC/VAC Thermal housing Zonex-TK-M30-24-36 VDC/VAC ?????????? ??????-??-?30-IR-PoE Thermal housing explosion-proof Zonex-TK-Exd-M40-IR-24-36 VDC/VAC Thermal housing Zonex-TK-M30-IR-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M40-IR-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M30-24-36 VDC/VAC Thermal housing Zonex-TK-M40-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M40-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M30-LE-PoE Thermal housing explosion-proof Zonex-TK-Exd-M30-PoE Thermal housing Zonex-TK-M40-LE-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M30-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M30-LE-220 VAC Thermal housing Zonex-TK-M40-IR-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M40-LE-220 VAC Thermal housing Zonex-TK-M40-LE-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M30-IR-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M40-LE-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M30-IR-PoE Thermal housing Zonex-TK-M40-12 VDC Thermal housing explosion-proof Zonex-TK-Exd-M40-IR-12 VDC Thermal cover Zonex-TK-M30-LE-24-36 VDC/VAC Thermal housing explosion-proof Zonex-TK-Exd-M40-24-36 VDC/VAC Thermal housing explosion-proof Zonex-TK-Exd-M40-220 VAC Thermal housing explosion-proof Zonex-TK-Exd-M40-PoE Thermal housing Zonex-TK-M30-12 VDC ?????????? ??????-??-?40-LE-PoE ?????????? ??????-??-?30-LE-PoE

Description

Explosion-proof thermal housing with IR illumination in a special version is designed to protect embedded video cameras and other electronic equipment, and use in hazardous areas without lighting or with insufficient lighting. Explosion protection marking PB Ex db I Mb / 1Ex db IIC T6 Gb / Ex tb IIIC T85C Db allows the thermal housing to be used in hazardous areas of classes "1", "2", "21" and "22", closed rooms and open objects. The environment may contain explosive mixtures of gases and vapours with air of categories I, IIA, IIB and IIC. The thermal housing is optionally equipped with a sun visor and cable glands. Thermal housing is recommended for use at chemical and petrochemical production facilities, in chemically aggressive alkaline and acidic environments, on oil and gas production platforms in seawater and salt fog.

Specifications

Overall size

L:566 (with canopy) / 524 (without canopy) x W:140 x H:270mm

Weight

11.5 kg

Housing material

Galvanized steel

Temperature range

-60°C ÷ +55°C (with heating) / -45°C ÷ +55°C (without heating)

Power supply voltage

220 VAC
