Fire Alarm Notification Device Filin-T-M-12, Filin-T-B-12, Filin-T-M-220, Filin-T-B-220

Available for Import

Fire Alarm Notification Device Filin-T-M and Filin-T-B for Emergency Alerts

Fire Control Stations

Manufacturer: CJSC NPK "ETALON"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

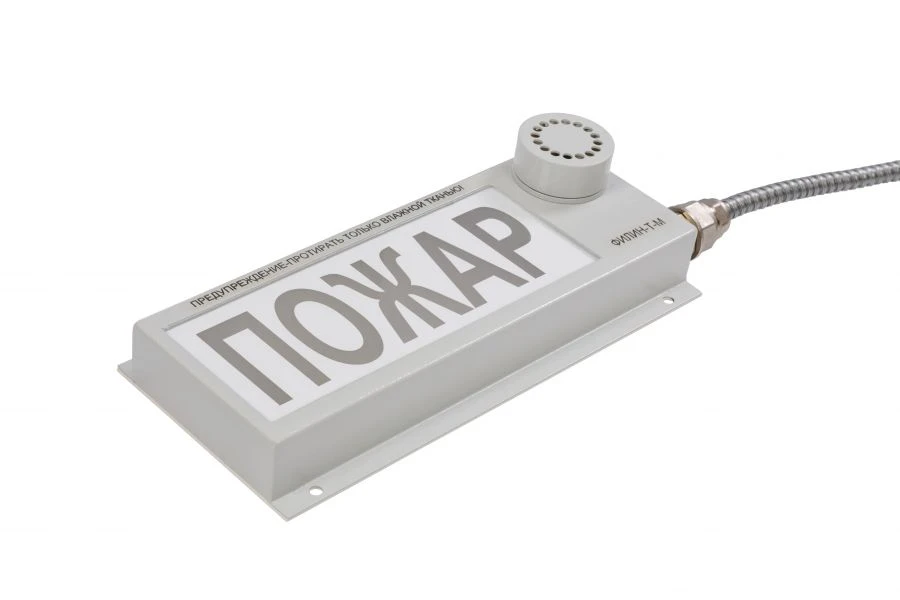

The FILIN-T-M, FILIN-T-B sirens (scoreboards) are designed to provide light text and sound alarm signals. FILIN-T-B is characterised by a larger screen size. The models with the U index are characterised by the presence of a control signal via a separate wire.

Use in hazardous areas of classes 1 and 2. The alarm light signal is contrast-distinguishable at illumination up to 1000 lx at a solid angle of 90° from a distance of 15 metres. The housing is made of structural steel covered with grey polymer paint.

The power cable in a metal sleeve (or armoured) is removed from the case and is an integral part of the device. The case is filled with compound inside. Text, inscription colour, sign (pictogram) pattern, background colour (contrast colour) are determined by the customer.

The recommended number of letters in the inscription is not more than 20, the recommended number of lines in the inscription is 1-2.

Specifications

Supply voltage, sirens with index 12

10.8...28 V

Power supply voltage, sirens with index 220

220 V

Power consumption, sirens with index 12

5 W

Power consumption, sirens with index 220

Operating temperature

-60...70 °C

Explosion protection marking

1Ex mb db IIC T6 Gb X

Explosion protection marking, silent version

1Ex mb IIC T6 Gb X

Degree of protection against water and dust

IP66/IP 67

Alarm light flashing frequency

0.5...5

Sound pressure level at a distance of 1m along its transmitter axis, not less

105

Duration of continuous operation in the alarm signal mode, for light and sound sirens (scoreboards)

Duration of continuous operation in alarm signal mode, for light sirens (scoreboards)

180

Cable length

1.5...25 m

Screen size, mm

240x90; 380x140

Weight of Filin-T-M, not more

3.7 kg

Weight of Filin-T-B, not more

5.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
