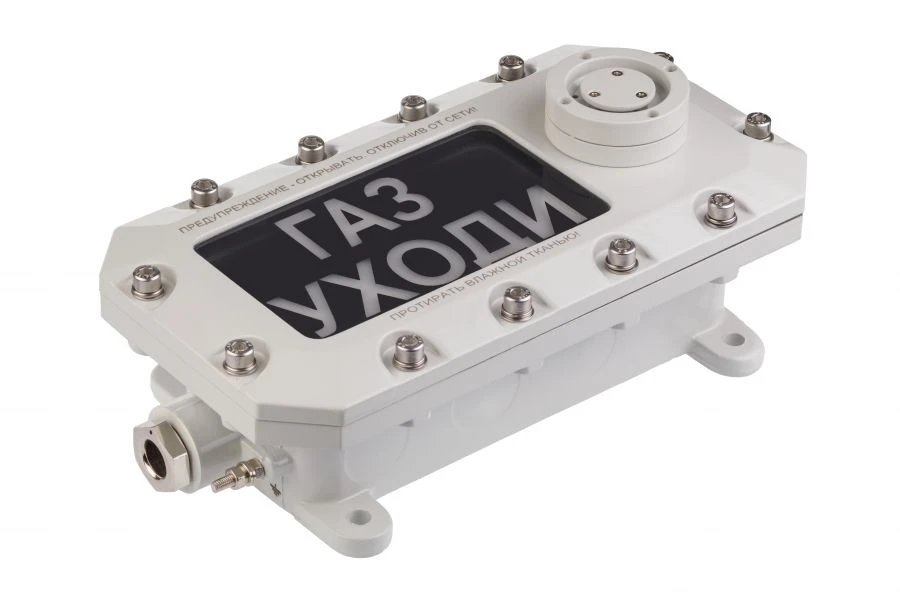

Fire Alarm Signaling Device Filin-T-RV-12 and Filin-T-RV-220 for Mining Applications

Fire Control Stations

Manufacturer: CJSC NPK "ETALON"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire light and sound explosion-proof alarms (boards) Filin-T-12, Filin-T-220, Filin-T-Oxr1, Filin-T-Oxr3

Description

Alarms (scoreboards) of FILIN-T-RV models of mine version are designed to provide sound and light (text or sign) alarm signals. The sirens can be used as information, exit and evacuation signs with constant or intermittent light indication. The sirens equipped with batteries can be used in conditions of power failure.

According to the explosion protection marking, the boards can be used in mines (mines) hazardous by mine gas (methane) and combustible dust and in their surface buildings. The alarm light signal is contrast-distinguishable at its illumination up to 1000 lx in the solid angle of 90° from a distance of 15m. Text, inscription colour or sign (pictogram) pattern, background colour (contrast colour) are determined by the customer.

The recommended number of letters in the inscription is 20, the number of lines in the inscription is 1-2. Can be supplied with 2 input boxes for transit installation or with one input box for dead-end installation.

Specifications

Supply voltage FILIN-T-RV-12

10...26 V

Supply voltage FILIN-T-PV-220

90...264 V

Power consumption FILIN-T-RV-12, not more than

10 W

Power consumption FILIN-T-RV-220, not more than

Operating temperature for corrosion-resistant steel models (H)

-60...70 °C

Operating temperature for corrosion-resistant steel (H) models, battery models

-20...50 °C

Operating temperature for carbon steel models (C)

-30...70 °C

Operating temperature for carbon steel models (C), battery models

-20...55 °C

Explosion protection marking

RV Ex db I Mb/1Ex db IIB T6 Gb

Degree of protection against water and dust

IP 66/ IP 67

Beep

Siren

Sound pressure level at a distance of 1 m, not less than

105

Alarm light flashing frequency

0.5...2

Wiring diagram, model without battery

Two-wire

Wiring diagram, model with battery

Four-wire

Permissible duration of continuous operation in the alarm mode, not more than

Duration in battery alarm mode, not less than

Number of cable glands for external connections or screw plugs

1...2 pcs

Cross-section of wires to be connected to the terminals

3.5 mm²

Inscription size, mm, not less

182x105

Weight, not more

13.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
