Flexible Power Cables for Voltage 380 and 660V KG - Ideal for Electric Connections
Manufacturer:INKATEX LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Silovye cables with copper conductors with rubber insulation and sheath KG 660 V are designed for connection of mobile mechanisms to electrical networks at AC voltage of 660 V with frequency up to 400 Hz or DC voltage of 1000 V,
Power cables with copper conductors with rubber insulation and sheath of KG 380 V brand are intended for connection of portable and mobile electric devices to electric networks at rated alternating voltage 380 V with rated frequency up to 400 Hz or permanent voltage 660 V.
The cable can be used for laying both indoors and outdoors, without laying underground.
It is allowed, with observance of all safety measures, installation of cable line in the open air on ropes and trestles.
Power cables with copper conductors with rubber insulation and sheath of KG 380 V brand are intended for connection of portable and mobile electric devices to electric networks at rated alternating voltage 380 V with rated frequency up to 400 Hz or permanent voltage 660 V.
The cable can be used for laying both indoors and outdoors, without laying underground.
It is allowed, with observance of all safety measures, installation of cable line in the open air on ropes and trestles.
Specifications

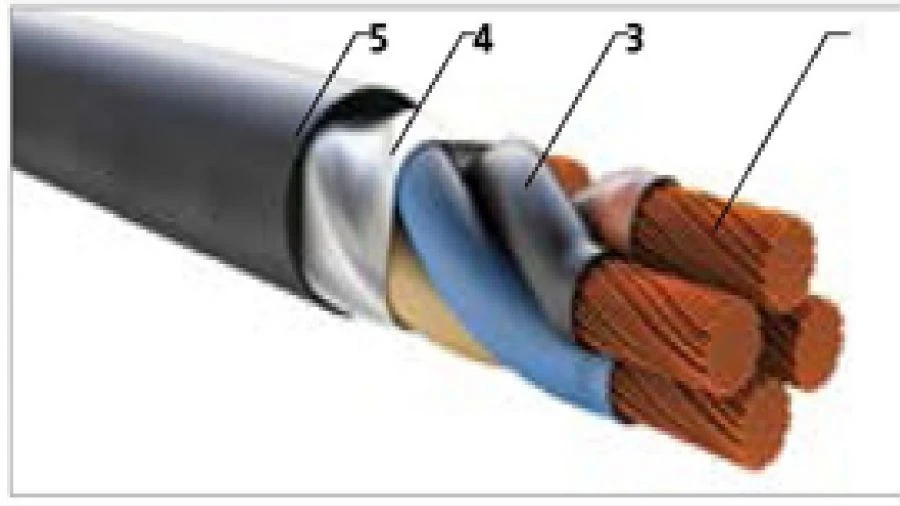

Core design
Conducting core - copper multi-conductor, round, corresponds to class 5 according to GOST 22483.
Filling between insulated conductors
Separation layer - synthetic film or talc or other similar material applied to the core. It is allowed to manufacture without film provided that the insulated cores are separated from the sheath.
Type of sheathing and protective cover
Separation layer - synthetic film or talc or other similar material applied to the core. It is allowed to manufacture without film provided that the insulated cores are separated from the sheath.
Number of conductive cores
1...5 pcs
Nominal cross sections of conductor cores
2.5...185 mm²
Nominal voltage
0.38...0.66 kV
Conducting core material
Copper
Mark
KG
Core material
Copper
Core diameter
2...18 mm
Insulation material
Insulation - of insulating rubber.
Sheath material
4. outer jacket is made of hose rubber.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
