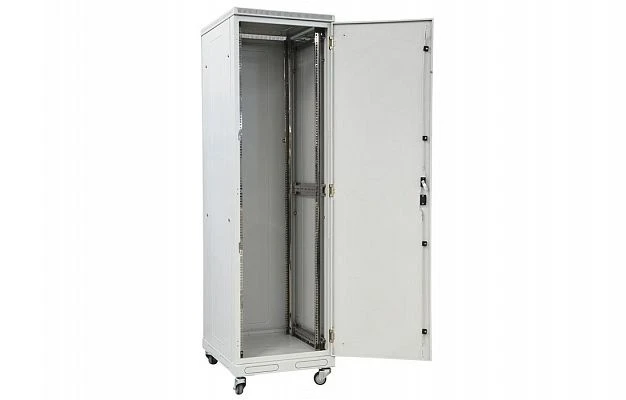

Floor Telecommunications Cabinet 19" - SHP-NP-M for Active and Passive Equipment

Designed to accommodate active and passive telecommunication equipment. The product is made in the system of supporting structures of 482.6 mm (19") series. Climatic version UHL4, designed for operation in closed rooms.

It has a fully collapsible design and consists of a base, roof and two welded frames connected by a set of channels. It is delivered in three transport places. Due to the fastening elements, the cabinet frame has increased rigidity.

Distributed vertical load up to 600 kg. The cabinet is equipped as standard with: front door, side and rear walls with locks. Cable glands are provided in the upper and lower parts of the cabinet.

Fan modules can be installed in the base or roof of the enclosure. The vertical rails are depth adjustable. The enclosure earthing system is standard.

In the base of the cabinet provides installation of screw supports (legs) to compensate for unevenness of the floor, as well as possible installation on the roll ...
