Fluorescent Screen LS2-1 (4) for Infrared Laser Visualization

Fluorescent Screen LS2-1 (4) for Visualizing Near-Infrared Laser Emission

Manufacturer: PHOTONTECHSYSTEM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Luminescent screens LS2 allow to visualise laser radiation of near infrared spectrum of continuous and pulsed lasers into visible spectral range and to control the course of the beam. Due to the large size of these screens it is possible to use them for detection of laser beams of large diameter, and their polymer base allows to work in various field and weather conditions. These screens have a laminated coating, which provides additional protection against mechanical damage and moisture. Features: high resistance to physical effects, to temperature and humidity fluctuations; additional laminating coating; wide operating range allows to convert IR laser radiation from different sources; high durability.

Specifications

Daylight charging is required
no
Polymer type
IK4

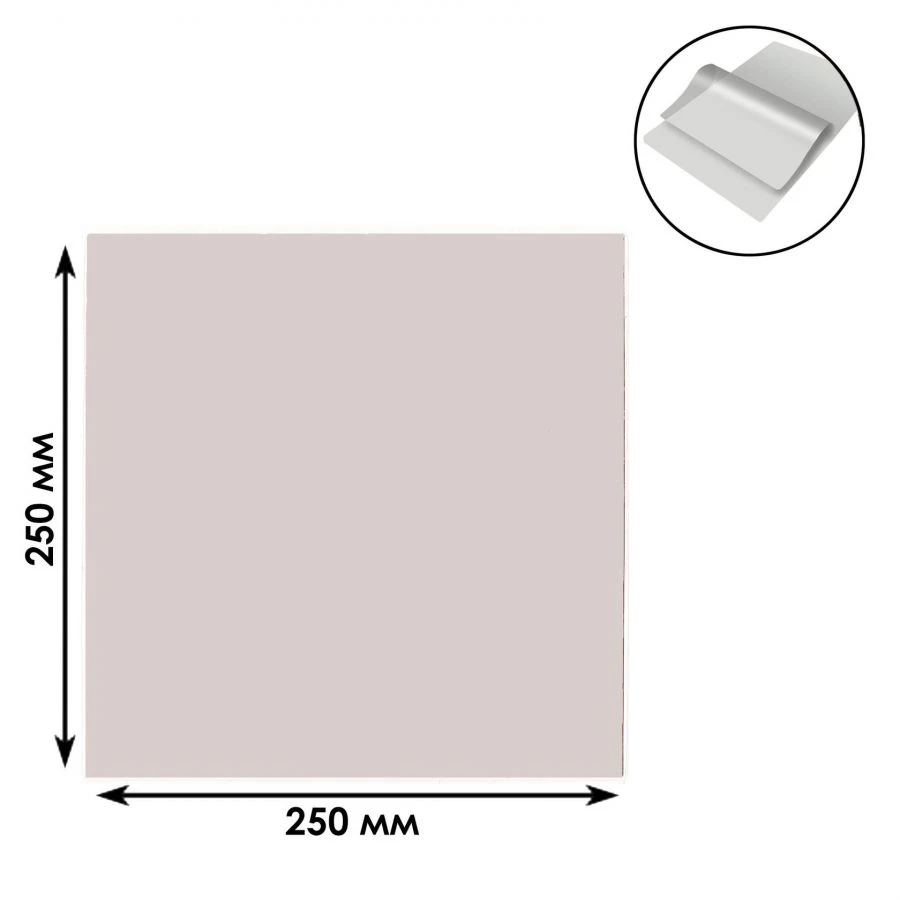

Detection area size
250?250 mm
Spectral range, µm
0,78-1,07, 1,45-1,64
Failure threshold, mW/cm^2
>700
Sensitivity, ?W/cm^2
<2 (@808 nm), <0.175 (@960 nm), <100 (@1550 nm)
Glow color
Green
Possibility of manufacturing according to individual dimensions
Armoured glass
Adhesive layer
no
Type
Laminated
