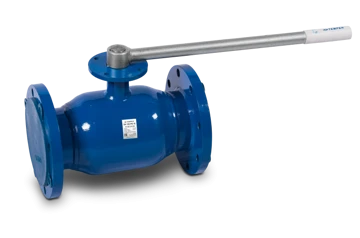

Available for ImportFull Bore Ball Valve 294 with Flange for Actuator Installation - Reliable Flow Control
Manufacturer:TEMPER LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Full bore 293 ball valve with actuator mounting flange, 29320300Full bore ball valve 294 with flange for PN25 actuator installation, 29420300293 Full Bore Ball Valve with Actuator Flange, 29320150Standard bore 283 ball valve with actuator flange, 28320250293 Full Bore Ball Valve with Actuator Flange, 29320150
Description
Connection type:
flanged (PN 25)/flanged (PN 25)
Work Environment:
heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials of valve parts.
flanged (PN 25)/flanged (PN 25)
Work Environment:
heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials of valve parts.
Specifications
Airtightness class
Class "A" GOST 9544-2015
Diameter
200 mm
Nominal pressure
25 MPa
Construction length
530 mm
Weight
92.54
Connection type
Flanged
Aisle
complete
Flange for mounting the actuator
with flange
Execution
ordinary
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)
Payment Methods
