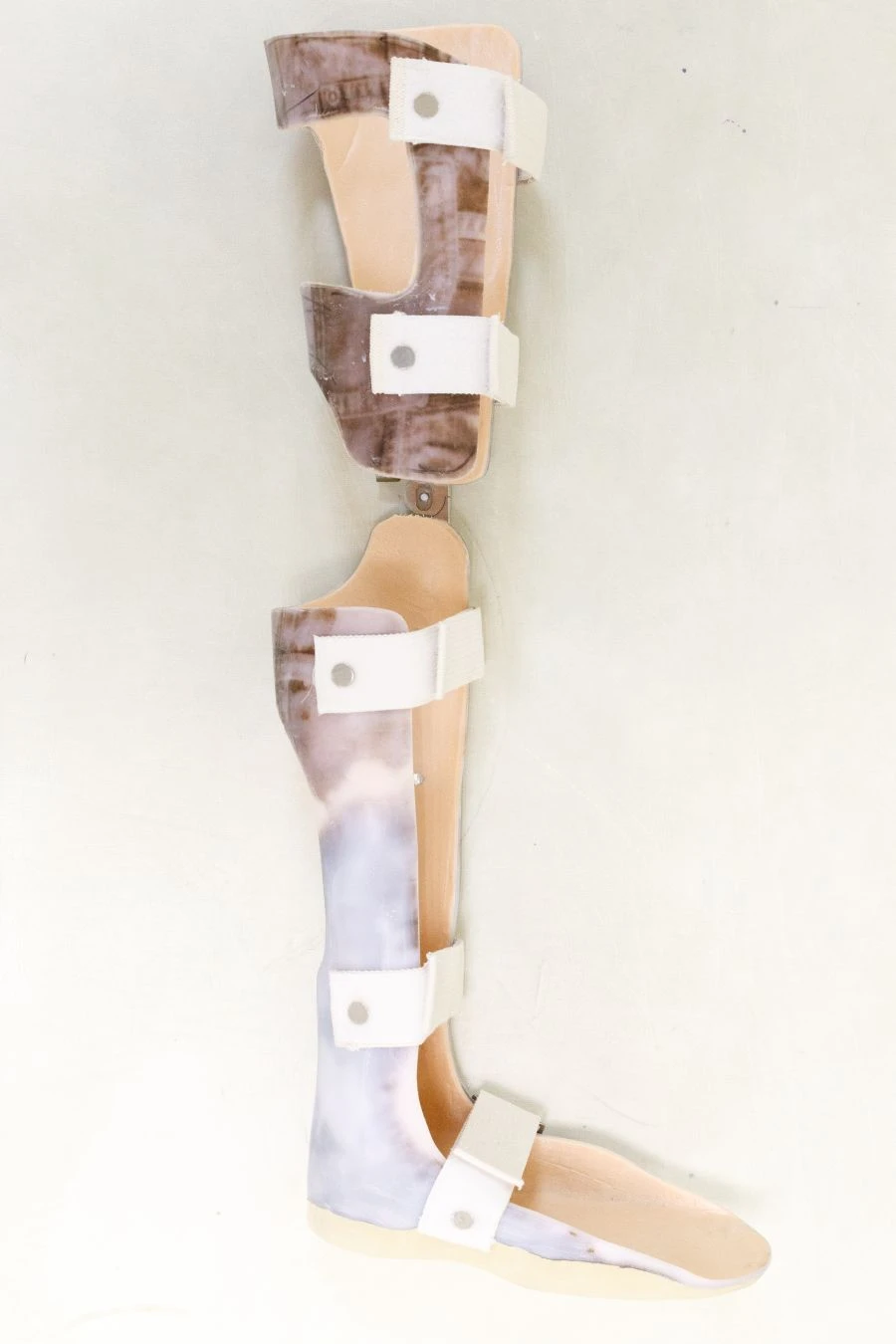

Full Leg Apparatus AN8-56 for Correction and Support of Lower Limb

The full leg apparatus is designed for correction, fixation and unloading of the lower limb. It consists of sleeves on the thigh, shin and foot, connected with each other by joints, providing movement in the ankle and knee joints in the sagittal plane. The apparatus can be manufactured with a tuberous landing.

Knee joints are lockable, lockless, discrete. The ankle joints are lockless, discrete, with support for the sagging foot. Manufactured by vacuum moulding on an individual plaster cast from thermoplastic materials, by lamination of carbon and textile materials with resin.

The sleeve is decorated with thermal paper. The design of the footbed of the finished product allows the recipient to wear standard footwear. A rubber sole is allowed for limb length compensation and walking comfort.

The softening inlay is made of foam material and is sanitised.The fastening is in the form of a textile clasp.
