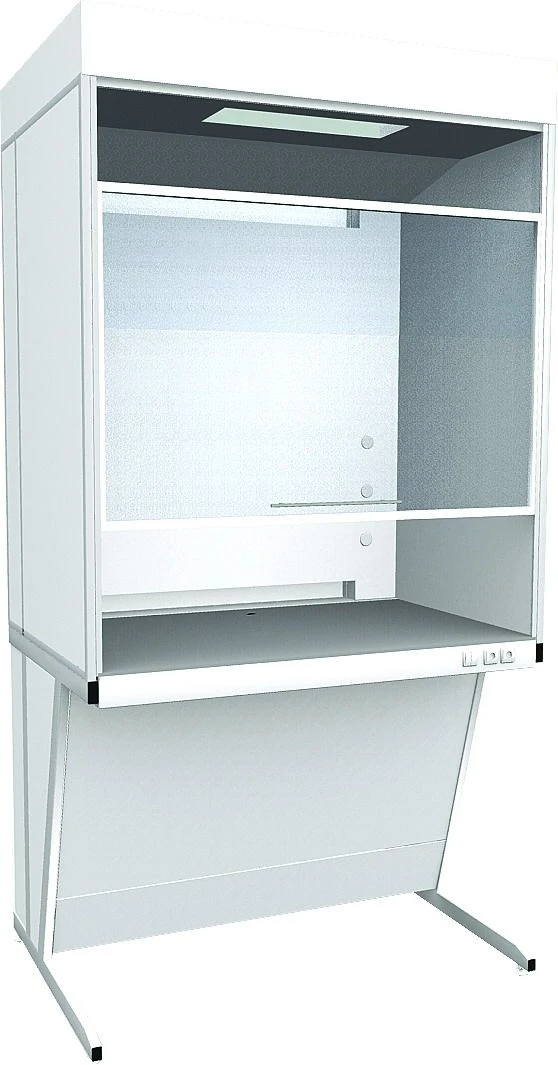

Fume Cabinet for Acid and Organic Liquid Handling MVSH-1 - Protect Yourself from Harmful Vapors

The fume cupboard is designed to work with acids, organic liquids and various gases. The fume cupboard protects the operator from exposure to harmful substances by extracting vapours from the chamber. Metal fume hoods have a double rear wall.

Ventilation openings are located at the bottom and top of the working area of the chamber to extract gases of different specific densities. The lifting screen is made of armoured or tempered glass. In the lower position, the distance between the screen and the worktop is 50 mm, which allows the ventilation system to operate normally with the screen fully lowered.

The worktop is located at a height of 900 mm. Water and gas taps can be installed on the back wall on the left and right. The remote control valves are located on the front panel.

There is an electrical box on the front panel. The base of the fume cupboard is mounted on adjustable screw supports.
