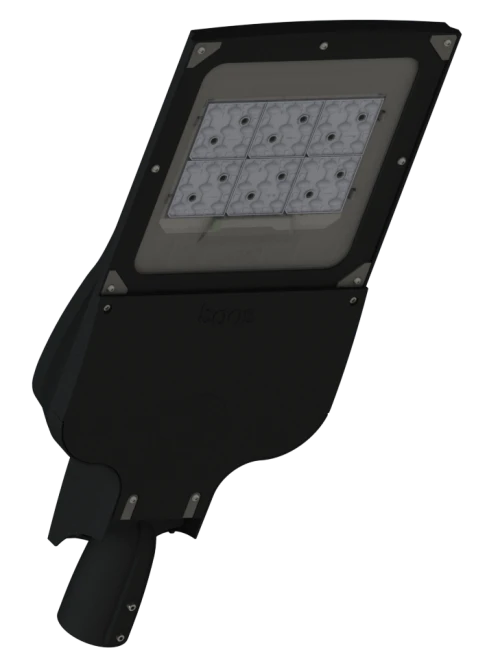

GALAD Galeon L LED Outdoor Utility Lighting Fixtures for Streets and Parks

LED Lighting Fixtures

Manufacturer: Likhoslavl Lighting Equipment Plant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Luminaires for utilitarian outdoor lighting, designed to illuminate streets, roads, squares, boulevards, car parks, railway platforms, courtyard areas and areas in front of shopping centres. The design of all series of luminaires has been developed taking into account convenient maintenance during operation. High degree of protection - IP66 against penetration of moisture and dust.

The protective translucent plate is made of tempered silicate glass. The luminaire housings and seating are made of aluminium, the luminaires are protected by impact-resistant powder coating with high mechanical properties. The luminaires are manufactured using high quality components and materials of domestic production.

The luminaires use programmable power supplies with a programming step of 1W and have a built-in function of regulation of luminous flux of the luminaire, secondary optics of own production, providing a wide range of CCC.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources

Length

791 mm

Width

345 mm

Type of supply current

Variable

Degree of protection (IP)

Upper operating temperature value

40 °C

Rated supply voltage

220 V

Power consumption, W

40...200 W

Power factor

IK code

Luminous flux, lm

6000...28000 lm

Correlating color temperature (CCT)

3000...5000 K

Color rendering index (Ra)

Pulsation factor

3 %

Protection class against electric current

Net weight

B1/B8 2100/900 MHz kg

Climatic version

Lower operating temperature value

40 °C

Type by installation location

Cantilever

Housing material

Aluminum

Height

120 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
