Gas Cylinder Storage Cabinet with Sloping Roof SG-1kr for Safe Storage

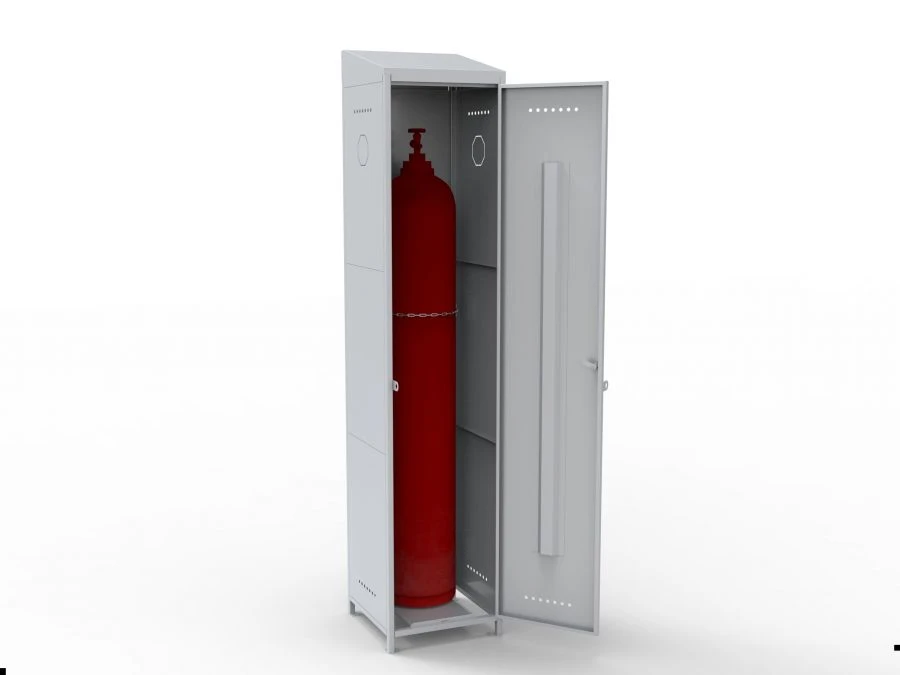

Cabinet SHG-1kr with sloping roof is designed for safe and convenient storage of 1 gas cylinder with height up to 1650 mm and width up to 300 mm. Reliable construction is due to a strong frame made of 20x20 mm steel pipe, covered with 0.7 mm thick steel sheet. The bottom is reinforced with 3 crossbars made of profile pipe and covered with sheet metal.

There is a chain to secure the cylinders. The cabinet is equipped with a postal lock and an eyelet for a padlock. In the upper part of the cabinet walls there is one hole D90 mm for cylinder connection.

Perforations are provided in the sides of the cupboard and in the door at the top and bottom to ensure ventilation. The height of cylinder placement in the cabinet is 70 mm. For fixing to the floor there are D9 mm holes in the cabinet legs.

For easy cleaning, the cabinet is equipped with a sloping roof with a slope angle of 12°. This cabinet is a modification of the SHG-1 cylinder cabinet, which does not have a sloping roof.
