Gas Leakage Monitoring System SKZP-A-VS DN50-DN200 Solar

Available for Import

Gas Leakage Monitoring System SKZP-A-VS DN50-DN200 for Pipeline Safety

Gas and Smoke Analysers

Manufacturer: SERVISSoft LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

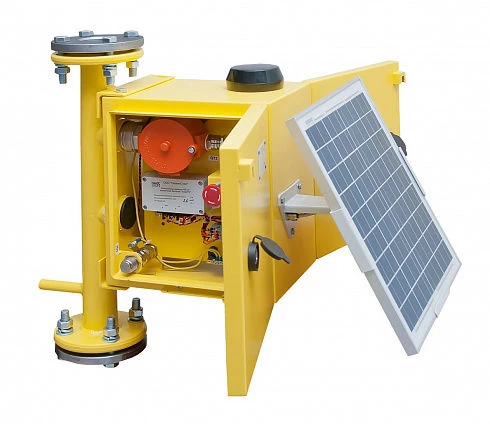

SKZP is designed for autonomous issuance of emergency warning signalling about gas pipeline condition (possible gas leaks into gas pipeline protective cases) in places where the gas pipeline approaches or crosses a railway or motorway. Data transmission is carried out via wireless cellular communication channels of GSM 900/1800 standard. Functional capabilities: automatic control of gassiness in the places of convergence (crossing) of the gas pipeline with the railway; signalling of the system cabinet door position; automatic issuing of emergency warning alarms about the gas pipeline condition and possible gas leaks to the operating organisation and railway station duty officers; access control to the equipment; autonomous operation mode. The system, depending on the modification, is designed for installation on the exhaust candle with a nominal passage from Du50 to Du200.

Specifications

Type of gas analyzer

Stationary

Availability of gas analyzer sensor

Built-in

Supply voltage, max.

3.6, ?

Degree of dust and moisture protection

IP54

Explosion protection marking

2 Ex ic IIB T3 Gc

Type of explosion protection

Intrinsically safe electrical circuit

Modification Du200

58, kg.

Modification Du150

48, kg.

Modification Du125

43, kg.

Modification Du100

39, kg

Modification Du80

36, kg.

Modification Du50

32, kg.

Modification Du125

875x555x310, mm

Modification Du200

963 x 555 x 355, mm.

Modification Du150

900 x 555 x 330, mm.

Modification Du100

825 x 555 x 296, mm

Modification Du80

800 x 555 x 290, mm.

Modification Du50

790 x 555 x 365, mm.

Diameter of the nominal bore of the exhaust candle

50 to 200, mm.

Operating temperature range

From -40 to +60, ?

Wireless communication standard

GSM 900/1800

Current consumption in power saving mode

8, mA

Average maximum current consumption in data transfer mode

370, mA

Power consumption

1, W

Type of power supply

Self-contained (battery)

Battery recharging

solar module

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
