GML 16-6 Soldered Copper Cable Connector Sleeve Available for Import

GML 16-6 Soldered Copper Cable Connector Sleeve for Electrical Applications

Cable Accessories
Manufacturer: ZETA OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Sleeve GML 35-10 ZETARUS Sleeve GML 185-21 ZETARUS Sleeve GML 25-7 ZETARUS Sleeve GML 50-11 ZETARUS Sleeve GML 4-3 ZETARUS

Description

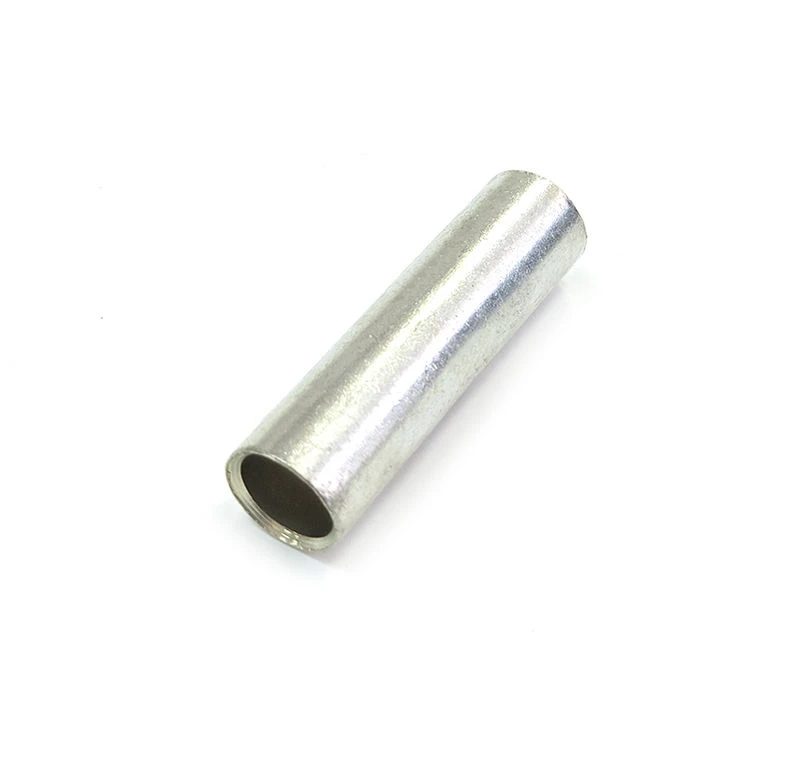

"Cable connecting copper tinned sleeve GML 16-6 fixed by crimping, are intended for butt connection of wires and cables with copper conductors with cross-section 16 mm2.Copper tinned sleeves are used for cables with voltage up to 10 kV.Sleeves GML 16-6 are made of electrotechnical copper of mark M2 with protective covering tin-bismuth (electrolytic tinning). Products conform to: GOST 23469.3-79 Article Type of product Nominal cross-section Dimensions, mm d1 d2 L zeta11414 GML 16-6 16 6 9 9 30"

Specifications

Availability of coverage
Tin-bismuth (Sn-Bi)
Connector type
sleeve
Operating voltage
1...10 kV
Nominal cross-section
16 mm²
Inner diameter
6.8 mm
Climatic version
? 2
Cable cross-section 2, 3 flexibility class
16 mm
Cable cross-section 5, 6 flexibility class
16 mm
Material
Copper
