GPS Monitoring Controller for Mobile Object Tracking - GLOSAW ASN

Radar & Navigation Equipment

Manufacturer: GLOBAL AUTOMATION SYSTEMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

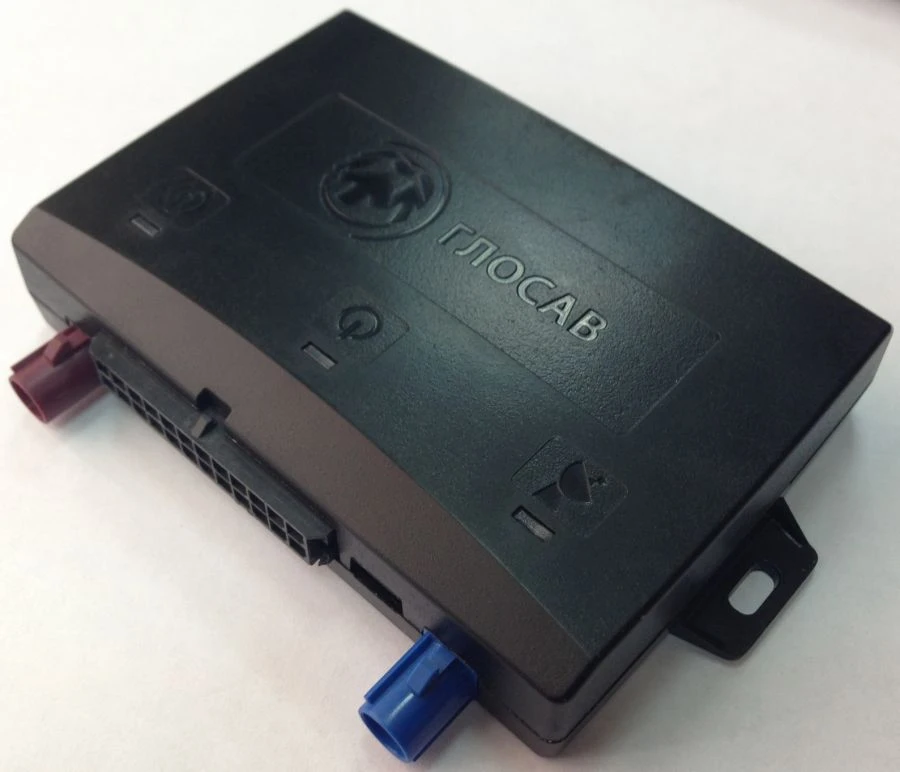

GLOSAV ACN is a device installed on a vehicle (vehicle) and designed to determine the current coordinates of the vehicle, direction and speed of movement by signals of at least two active global navigation satellite systems, data exchange with additional on-board equipment, as well as for information exchange via mobile radio telephony networks. The ANS is used for automatic collection, storage and transmission of data on the location of vehicles, transfer of monitoring information on the state of the ANS to GASIS "ERA-GLONASS" and other software. When peripheral equipment is connected, the ANS provides transmission of additional information on the state of the object (fuel level in the tank, temperature in the refrigerator, switching on and off on-board equipment, etc.) to the servers.

Adjustment of ACS parameters is carried out remotely. Data exchange between ACS and telematic servers is carried out via GSM/GPRS cellular network using EGTS, Wi... protocols.

Specifications

Operating supply voltage

7 to 65 V

Current consumption at 12 V in operating mode when the built-in battery is charging

0.08 to 0.3 A

Built-in battery capacity

1.1

Protection against short-term power surges

200 V

Supported navigation systems

?PRESS, GLONASS

Number of channels in navigation receiver

72 pcs

Cold start, max.

Sensitivity of navigation receiver, cold start

minus 148 dBm

Hot start, max.

Sensitivity of navigation receiver in tracking mode

minus 164 dBm

Possibility of data transmission via GSM

GPRS, EDGE, UMTS, HSPA

Possibility to select the parameters to be transmitted

Armoured glass

EGTS protocol support

Armoured glass

Number of IP addresses to which telemetry information can be simultaneously transmitted

3 pcs

Number of SIM cards

2 sim cards or 1 sim card and 1 sim chip

Operating temperature range

minus 40 to plus 85 °C

Degree of enclosure protection

IP 51

Overall dimensions of the housing, not more

127x100x27 mm

Weight, not more

0.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
