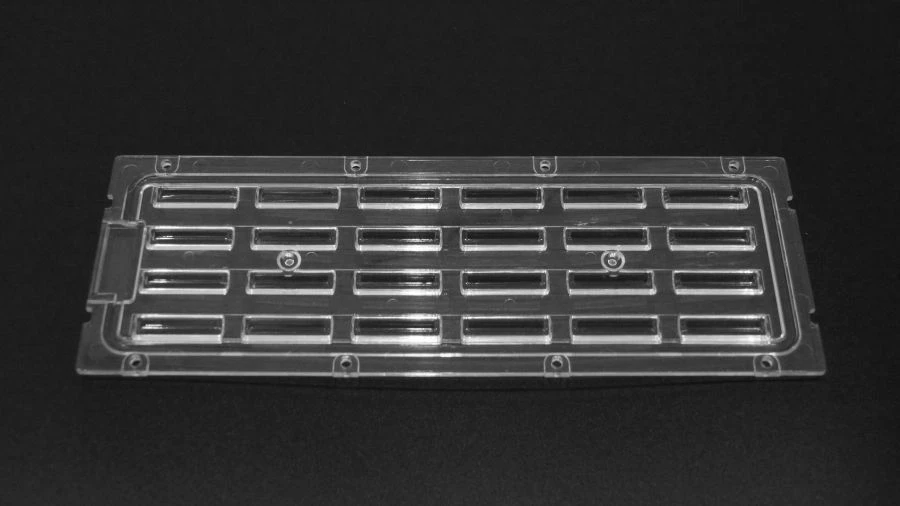

Group Lens for LED Lighting AMT-GN-250x90-3535-60 for Efficient Illumination

Group lens for LED luminaire is a luminaire component that redistributes the light emitted by several LEDs, fixed on the structure.

Purpose: Lighting of premises (workshops, warehouses, etc.);

Overall dimensions, mm: 250x90x6

Material: polymethylmethacrylate, polycarbonate;

lens form factor: 4x6 - for 96 or 144 diodes;

Light intensity curve type: Wide axial 60°;

Efficiency: 92%;

Weight: 77.5;

LEDs used: Size up to 3535: 96 LEDs in 3030 and 3535 housing; 144 LEDs in 2828 housing.
