Guiding Apparatus D1150N for Efficient Liquid Flow Management

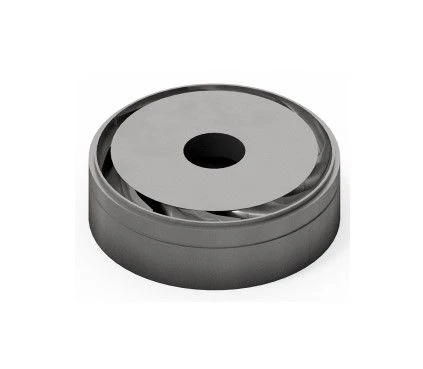

D1150N guiding apparatus. Nominal flow rate 1150 barrels per day (183 m3/d). Application: Element of the pumping stage, which serves to take the liquid flow from the impeller, converting the kinetic energy of the liquid flow into potential energy, bringing the liquid flow to the next impeller. Diameter - 88,77 mm, height - 28,5 mm, material - alloyed cast iron Niresist. Weight - 0,325 kg
