Guiding Apparatus D2400N for High-Performance Liquid Flow Management

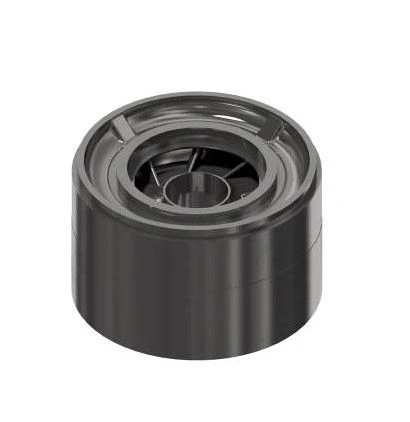

D2400N guiding apparatus. Nominal flow rate 2400 bpd (382 m3/d). Application: Element of the pumping stage, which serves for taking the liquid flow from the impeller, converting the kinetic energy of the liquid flow into potential energy, bringing the liquid flow to the next impeller. Diameter - 88,8 mm, height - 55,1 mm, material - alloyed cast iron Niresist. Weight - 0,870 kg.
