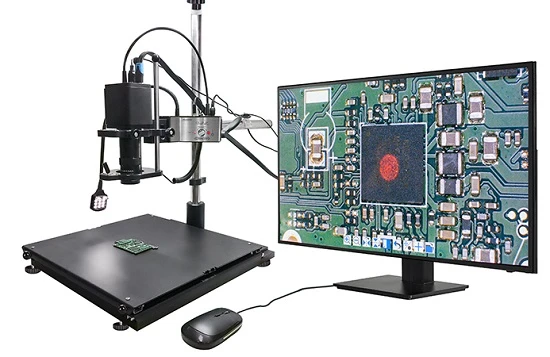

HD Digital Video Microscope 150/AF for Quality Inspection and Measurement

The video inspection system is designed for visual inspection of the quality of assembly of printed components, as well as photo and video recording with the saving the results to an SD-card. The HD-150/AF model is equipped with built-in autofocus and object evaluation function. Maximum optical magnification from 18 to 85x.

Digital zoom. Computer-less memory card photo function. Auto/Manual focus.

Function for measuring geometric parameters of objects (length, perimeter, area). Laser pointer for fast object positioning. Upper shadowless illumination, adjustable in brightness and position.

Side illumination, adjustable in brightness and position. Side UV illumination, adjustable in brightness and position. 3 degrees of freedom of the tripod for fixing the camera.

Rotation of the camera around the axis ±180°. Camera tilt. Subject table with movement on the XU axes.

Interfaces: HDMI, WIFI adapter. Possibility of replacing the optics for greater magnification. Magnetic stands (set of 4pcs).

Possibilities of work with autofocus: selection and change of autofocus region on the screen, constant tracking autofocus, autofocus at the request of the operator, manual programme. operator's request, manual software adjustment of the focus by the operator, exit of the autofocus to the zero reference point at the operator's command, autofocus switch off. Extensive functionality.

- metal tripod with four adjustments of the camera position and two-axis autofocus. a metal tripod with four camera position adjustments and a large two-axis slide table. size <ul> <li>- horizontal and vertical adjustment of the slide table and camera</li> <li>upper circular LED shadowless illumination</li> <li>warm-spectrum LED side illumination</li> <li>side LED illumination of the UV spectrum, wavelength 365-370 nm</li> <li>adjustable laser pointer for centre of frame</li> <li>Save/compare/playback frames and video</li> <li>optional adjustable digital zoom up to 10x.

The increased distance from the object of observation to the video camera allows the video microscope to be used for soldering and repairing printed assemblies mounted directly under the lens. Advantages of the video microscope:</li> <li>1920x1080 resolution, 60 frames per second</li> <li>no display delay</li> <li>automatic focusing and Sony sensor</li> <li>autonomous operation without a computer</li> <li>inbuilt function of estimated geometrical measurements on the image</li> </ul>.
