Available for Import

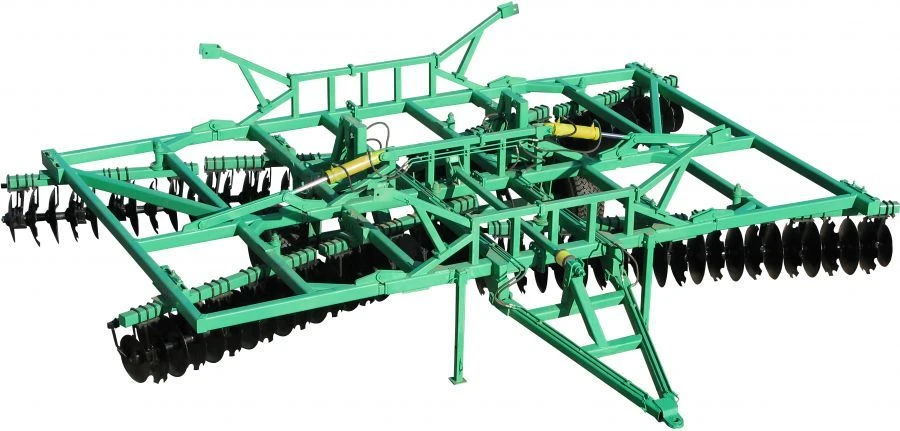

Heavy Disc Harrow BD-8.0M for Efficient Soil Tillage

Disc Harrows

Manufacturer: Petrovskoye RTP OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Heavy disc harrow BD-9,3M

Description

Disc harrows of BD series with working elements of increased resource, with weight per 1 disc, not less than 115 kg, designed: for cutting clumps after ploughing, processing surfaces of compacted soils, weed killing and shredding of plant residues after harvesting thick-stemmed row crops, loosening and preparation of soils, as well as for maintenance of meadows and pastures, for basic cultivation and preparation of soils for sowing in minimum, soil-protective and energy-saving technologies. Economical use of the harrow is ensured by clad discs of increased resource, which surpass domestic analogues in terms of total resource by 2-2.5 times, inter-repair resource by 3-5 times, as well as in terms of agrotechnical and energy (traction resistance, running stability, crumbling) indicators by 11-23 %. Working time per 1 disc - not less than 30 ha; increased, in comparison with domestic analogues, harrow weight (not less than 115 kg, falling on 1 disc) allows to achieve a reduction in the number of rev... .

Specifications

Type of product according to PP RF 616

Disc harrows

Distance between rows

1200 mm

Weight

9500 kg

Number of implement rows

2 pcs

Working width

8 m

Type

trailed; hydrofic

Productivity in the main time, ha/h

7;5-8;2

Disk type

spherical; cutout

Number of disks

500-2; 610-2; 660-69

Distance between disks

230 mm

Working depth in two passes

20 cm

Angle of attack of batteries, deg

9/12/15/18/21

Ground clearance, not less

260 mm

Transport speed, not more

Soil ridging

4 cm

Coupled with tractors with a power of at least

350 hp

Overall dimensions in working position

7800x8050x2400

Overall dimensions in transport position

7800x6000x3550

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
