High-Frequency Coaxial Waveguide Module M34230 for Communication Applications

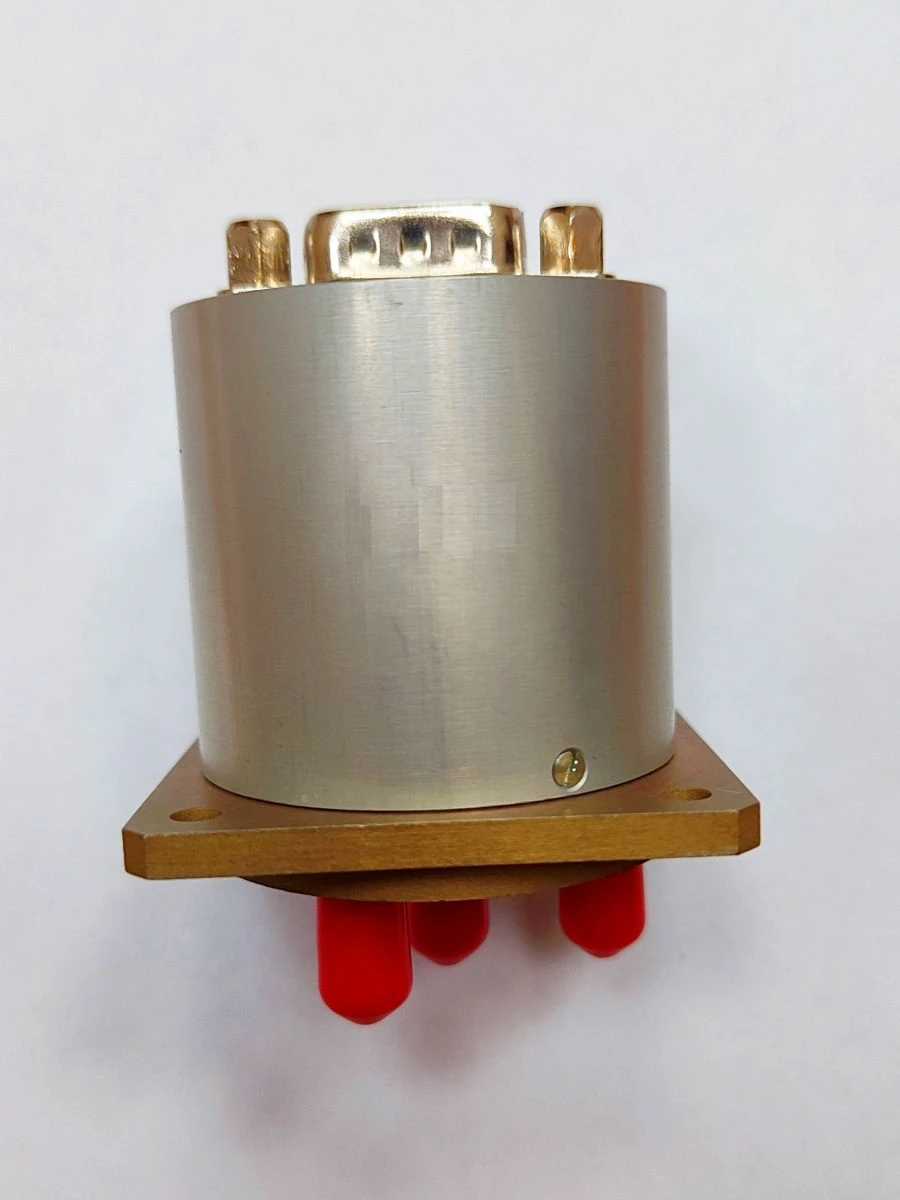

The M34230 UHF module is a coaxial-waveguide high-frequency unpolarised single-stable UHF module with shorting contacts, made in a metal case.The M34230 UHF module is designed for switching signals up to 18 GHz and performs the function of alternate switching of high-frequency paths.Contact type and configuration: SP3T-NO (1H3P), SP4T-NO (1H4P), SP6T-NO (1H6P)Digital control signal (TTL logic) available.Coaxial microwave switching circuit connector type: IX (SMA).Control circuit connector type: SNP268-9VP (D-sub).Operating supply circuit voltage (Unom) - 12 / 15 / 24 / 28V.
