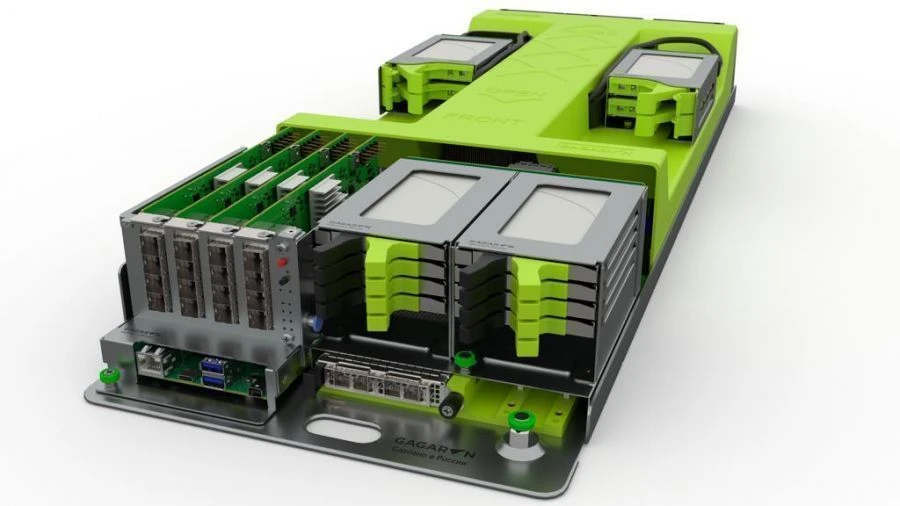

High-Performance Computing Server NERV.466216.009–101 for Data Storage and Processing

Data Processing Systems

Manufacturer: GAGAR.IN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The server is a high-performance computing device for data storage and processing. The main used processor Intel Xeon Scalable 3rd generation with thermal package up to 270 W in the amount of 2 pcs. The power supply of the server is provided from the common 12V DC power bus.

The server is equipped with: 3 PCIe 4.0 x16 slots, 1 PCIe 4.0 x8 slot, 1 OCP 3.0 slot; drive bays: 8 2.5' (U.2 -NVMe/SATA) drives on the front panel with hot-swap support, 4 2.5' (U.2 - NVMe) drives inside the server, 2 slots for M.2 PCI-E NVMe; network interfaces: Ethernet 100/1000 Mbps RJ45; ports and connectors: front panel: 2 x USB 3.0 Type A, 1 x USB 3.0 Type C,1 x miniDP, 1x RJ-45 (for management); server management system - BMC controller ASPEED AST2600; supported protocols: IPMI 2.0, Redfish, SNMP, WebUI, CLI (SSH); 3 fans 80 mm; UEFI and BMC development microcode GAGAR>N.

Specifications

Temperature range

1°C - 40°C °C

Server size

751x263x90,7 mm

Server weight

no more than 13 kg

Cooling modules

3 high performance 80 mm fans

Server management

BMC controller ASPEED AST2600, UEFI and BMC microcode developed by GAGAR>N; Supported protocols: IPMI 2.0, Redfish, SNMP, WebUI, CLI (SSH)

Power supply

Centralized from the 12 VDC rack power bus

HBA/RAID support

Intel VROC (standard); optional hardware RAID controller

RAM

32 DDR4-3200 memory slots, with 2 RAM modules installed

Storage bays

8 2.5' (U.2 -NVMe/SATA) front panel hot-swap drives, 4 2.5' (U.2 - NVMe) drives inside the server, 2 M.2 PCI-E NVMe slots

Ports and connectors

Front panel: 2xUSB 3.0 Type A, 1xUSB 3.0 Type C, 1x miniDP, 1xRJ-45

Communication tools and platform management interface

10/100/1000 Mbps Ethernet with RJ-45 connector; to data network via OCP 3.0 expansion card or PCI adapter

Expansion slots

3 PCIe 4.0x16 slots; 1 PCIe 4.0x8 slot; 1 OCP 3.0 slot

Processor chipset

intel® lewisburg c621A

Processor family

Two 3rd generation Intel® Xeon® Scalable processors

Form factor

2 OU

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
