High-Power Braking Resistors Series TR for Frequency Converters Available for Import

High-Power Braking Resistors Series TR for Effective Energy Management

Resistors & Varistors
Manufacturer: KEV-RUS LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

220 Series Braking Resistors

Description

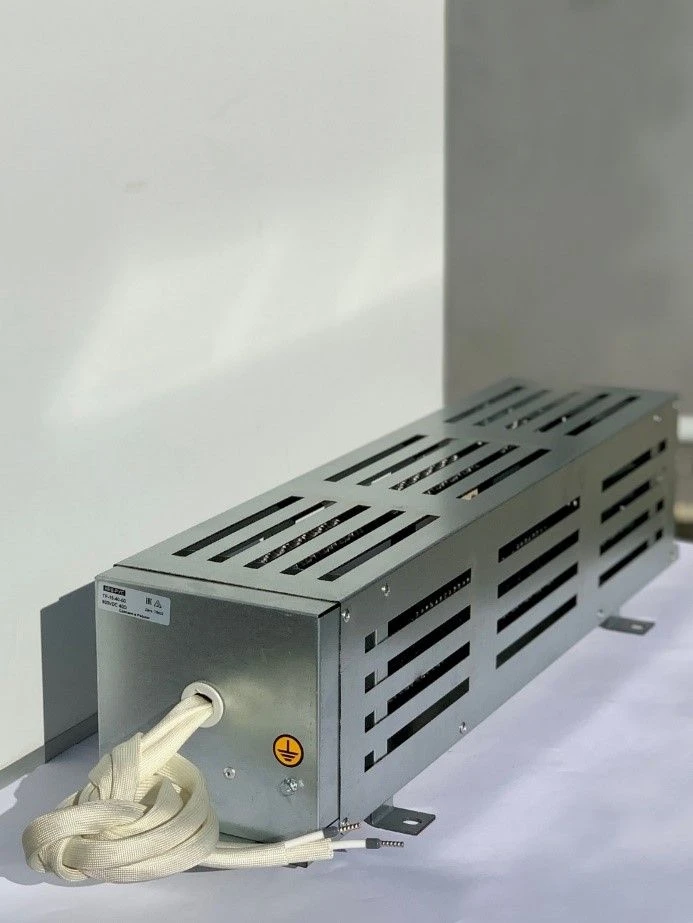

Braking resistors of TR series are high power permanent resistors and are designed for dissipation of excessive energy of the DC link of 400 V class frequency converters during generator braking of the controlled electric drive, they are connected directly to frequency converters or external braking modules, they are an assembly of heating elements in a metal case with protection degree IP20 according to GOST 14254.

Specifications

Nominal resistance of the resistor
13.5...60 ohm
Reduced limit temperature of the medium
1 °C
Higher limit temperature of the medium
40 °C
Reduced operating temperature of the medium
1 °C
Increased operating temperature of the medium
40 °C
Dimensions
171 mm
Number of resistors in the block
2...4 pcs
Power
10400...50000 W
Assignment
Dissipation of excess energy of the DC link of 400 V class frequency converters during generator braking of a controlled electric drive.
Degree of protection according to GOST 14254
IP20
Climatic version
1...40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
