High-Power Non-Wire Metal-Oxide RF Resistors R1-69P Available for Import

High-Power Non-Wire Metal-Oxide RF Resistors R1-69P for Coaxial Tracts

Resistors & Varistors
Manufacturer: PEKOM-NN LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

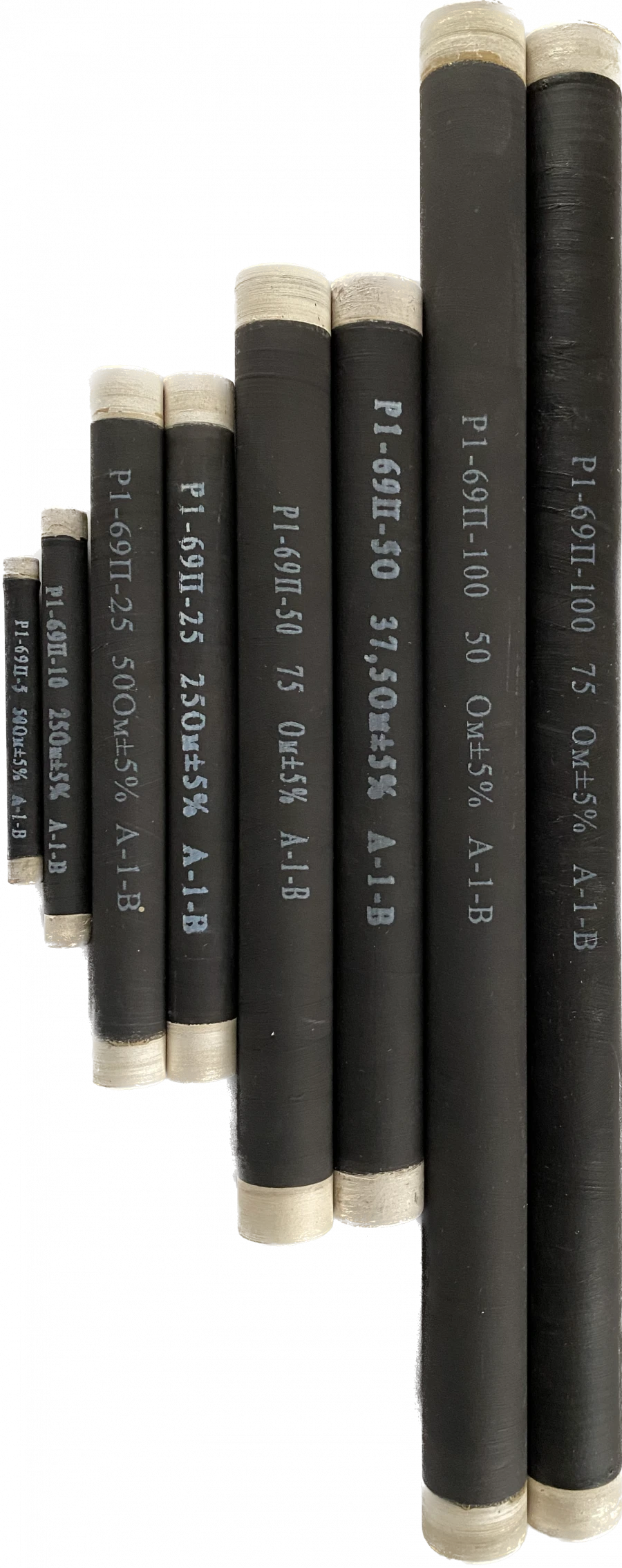

P1-69P-permanent non-wire metal-oxide microwave resistors. Microwave - resistors of medium and higher power dissipation of cylindrical design, designed for use in coaxial paths as resistive absorbers under conditions of natural cooling in the frequency range up to 3 GHz with VSWR up to 3 for all sizes, also as a matched load in a shielded case at VSWR 1,4 to 6,7 GHz and with VSWR 2 to 7,6 GHz for resistor ?1-69P-50, 75 "E". The resistors are intended for manual assembly of equipment.

Specifications

Nominal resistance of the resistor
120 ohm
Reduced limit temperature of the medium
40 °C
Higher limit temperature of the medium
150 °C
Reduced operating temperature of the medium
45 °C
Increased operating temperature of the medium
170 °C
Dimensions
280 mm
Designation
Resistors permanent non-wire ?1-69?
Accuracy; %
5 %
Assignment
For construction of radio equipment
Number of resistors in the block
1 pcs
Rated power dissipation of the unit
200 W
Resistance
120 ohm
Type
permanent non-wire magnets
Accuracy
5 %
Power
200 W
Power; W
200 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
