High-Pressure Heater Quick-Acting Protection Device Valves Available for Import

High-Pressure Heater Quick-Acting Protection Device Valves for Safety

Shut-Off Valves Equipment
Manufacturer: SALAVATNEFTEMASH OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

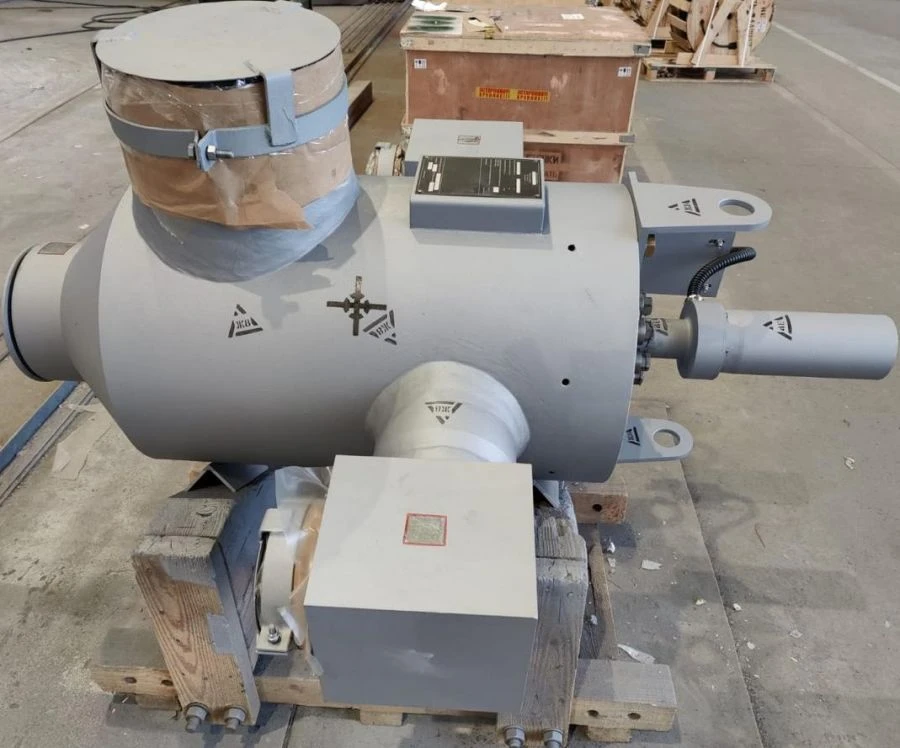

Valves of quick-acting protective device for high-pressure heaters for ?? 38 MPa with working medium temperature up to 285C, designed for installation in the system of high-pressure regeneration of turbine units of thermal power plants.The valves of MNT together with the system of power water (condensate) supply are designed to protect high-pressure heaters from the increase of condensate level in the steam space of LDPE above the permissible level. Product composition: inlet valve, check valve.

Specifications

Type of product according to PP RF 616
Control valves, return valves, safety valves, distribution and mixing valves, separating valves, combined valves, reducing valves
Climatic version
?
Exterior coating material
Acrus Terma
Material of mating flanges
Steel 20
Flange design
????.712442.101
Gasket material
????-?-3.1-?1-38-110?72?3
Design temperature
285 °C
Connection dimensions upper
16 mm
Seal seat material
Steel 20 + surfacing ZIO-8, CN-6L
ND basic
RD 153-34.1-39.504, BVAI.494234.046 TU
Corrosion allowance
1 mm
Hull steel grade
Steel 16GS
ZRA function
Protection of high-pressure heaters against condensate level increase in LDPE vapour space above permissible level
Hydrotest pressure
63500
Performance material
Steel 16GS

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
