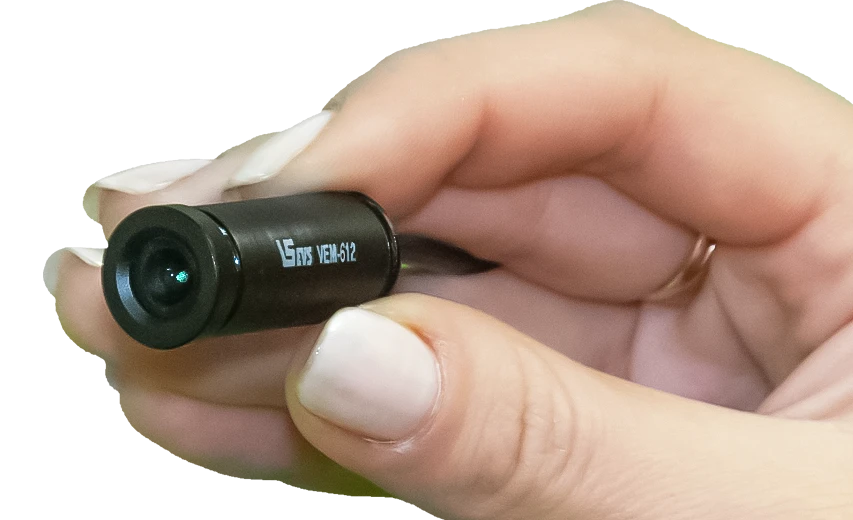

High-Resolution Color Surveillance Camera VEM-612 for Indoor Monitoring

Television Video Cameras

Manufacturer: EVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Small-size colour camera is designed for indoor observation of objects at air temperature from +1°C to +70°C, relative humidity up to 90%, atmospheric pressure from 720 to 780 mm Hg. The camera is designed to work as part of domestic, medical and industrial television surveillance systems. The video image can be displayed on a monitor, TV or computer screen. The camera has a digital video signal processing path and is characterised by the stability of its operation and the optimality of parameters (accumulation time, gain, white balance setting) in automatic regulation mode.

Specifications

CCIR standard

625 lines, 25 frames per second

Decomposition

Cross-line 2:1

Colour signal coding system

PAL

Photodetector

CMOS sensor IMX323LQN format1/2.9", number of elements 1920x1080

Resolution

600 TV lines

Field of view angle

Defined by M12 standard lenses. with focal lengths from 3.6 mm to 12 mm, which provide a diagonal angle of 70 to 20 angular degrees.

Synchronization

Internal

Sensitivity

Not worse than 0.004 lux at relative lens aperture1;2.0 and signal-to-noise ratio equal to 10.

Maximum illumination of the observed object

at least 100,000 lux

Current consumption

Not more than 80 mA at a supply voltage of +12 volts. The camera is operable in the range of supply voltages from 4 to 16 volts. ?

External dimensions without bracket and lens

Length - 31mm, Diameter - 14mm.

Weight

Not more than 30 grams

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
