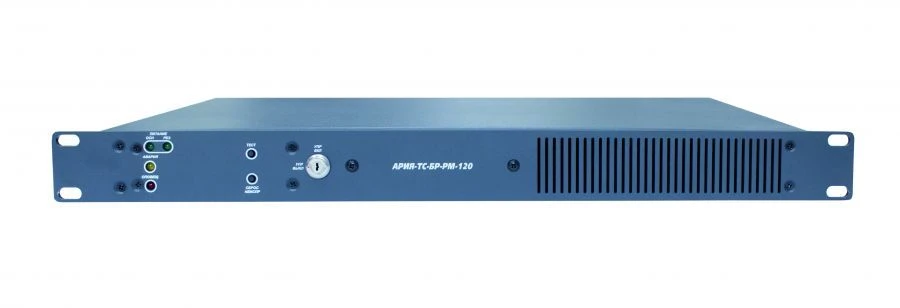

High Voltage Output Expansion Module ARIA-TS-BR-RM-120 for Audio Signal Amplification
Manufacturer:
ELECTROTECHNICS AND AUTOMATION LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Expansion unit with high-voltage output is designed to work as part of the transformer-based ARYA-TS voice alarm system as a power amplifier of the audio signal received from the ARYA-TS-BRO series voice alarm unit and is used to increase, if necessary, the number of connected speech sirens.
Specifications
Degree of protection of the shell (IP)
20
Main supply voltage
220 V
Power supply voltage from standby source
24 V
Power consumption
200
Maximum power output
120 W
Frequency range
16...16000
Number of alarm inputs
1 pcs
Number of notification lines (zones)
1 pcs
Number of control lines
1 pcs
Voltage in the notification line
100 V
Maximum impedance of conductors of the public address line
40 ohm
Maximum resistance of control line conductors
SBVVBG ohm
External battery operation time in standby mode
24
External battery operation time in alert mode
3
Recommended external battery capacity
17
Maximum number of speech sirens to be connected
120 pcs
Overall dimensions
482x43x298
Weight
3.6 kg
Operating temperature range
?10…+55 °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
