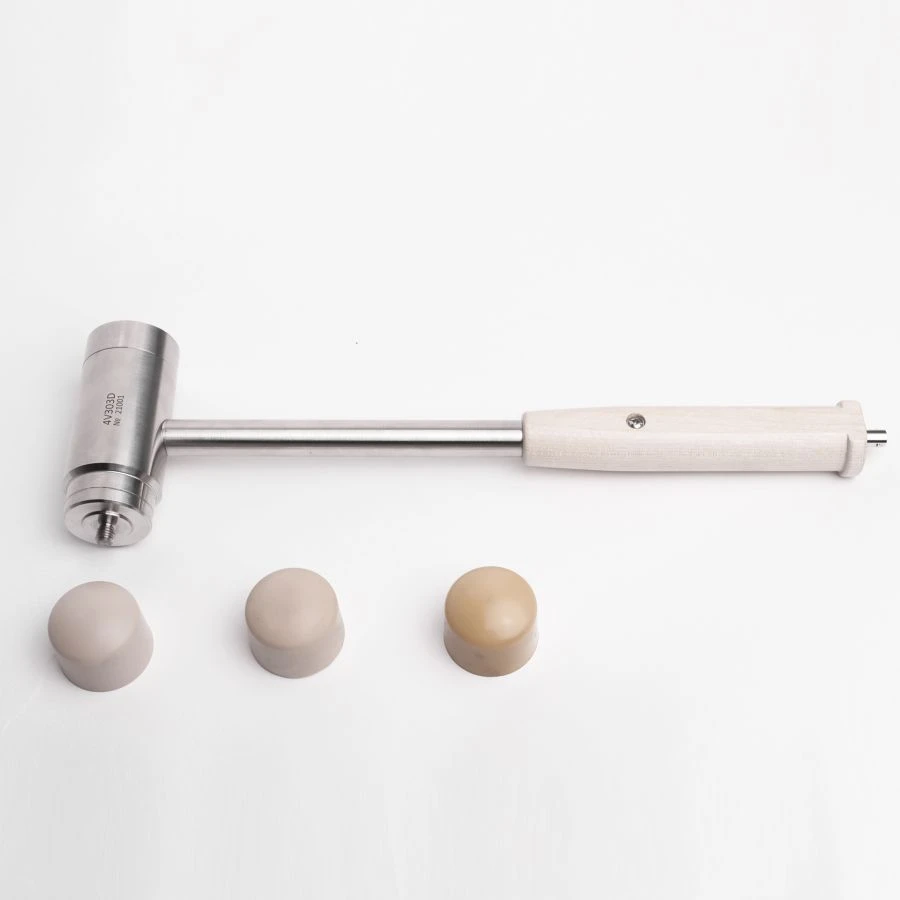

Impact Hammer with Integrated Force Sensor 4V303D for Impulse Applications

Vibration Measurement Equipment

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The impact hammers with integrated force sensor (to determine the degree of applied impact) are designed to transmit impulse impacts on the object of study. This enables modal analysis of mechanical systems, i.e. to determine the frequency characteristics of the object under test (resonances, shapes, frequencies and amplitudes of vibrations). GTLab's range of impact hammers includes samples from miniature to large-sized (from testing of small industrial objects, turbine blades and housing parts, to structures of building projects and foundations).

Specifications

Conversion factor (± 15%)

0,2 mV/N

Peak value of dynamic force

1 ... 4 ms ( with hard plastic striker) | 4 ... 7 ms ( with semi-rigid plastic striker) | 7 ... 11 ms ( with soft plastic striker)

Impact pulse durations

1 ... 4 ms (with hard plastic striker) 4 ... 7 ms (with semi-rigid plastic striker) | 7 ... 11 ms (with soft plastic striker)

Weight of hammer without striker and additional weight

2 000 ?

Additional weight

300 ?

Striker weight

230 g (rigid plastic) | 260 g (semi-rigid plastic) | 260 g (soft plastic)

Operating temperature range

-40 ... +125 °?

Power supply: ? voltage ? current

+ (18 ... 30) V 2 ... 20 mA

Noise level, RMS (1 Hz ÷ 10 kHz)

3 · 10–2 H

DC output voltage level

8 ... 13 ?

Output impedance

< 100 ohms

Connector type

BNC

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
