Available for Import

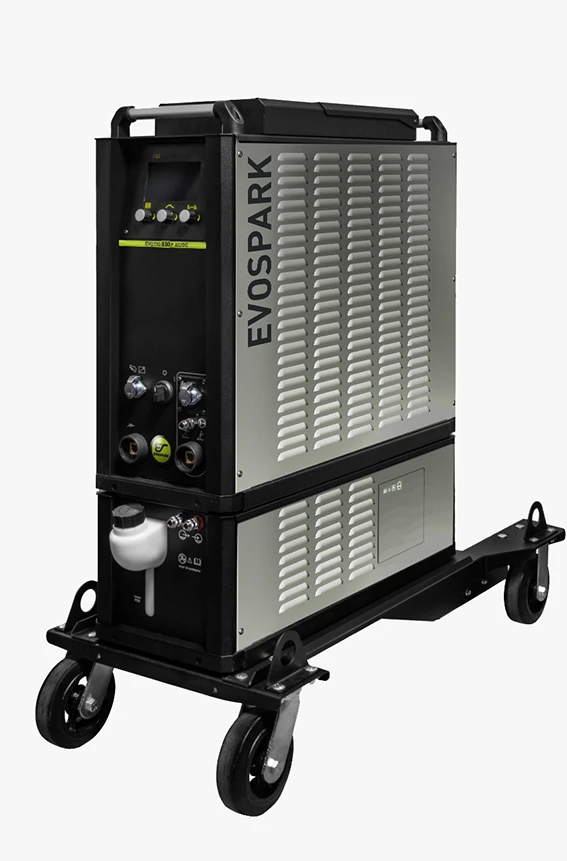

Industrial Inverter Welder for TIG Welding AC/DC - EVOTIG 800 P

Electric Welding Machines

Manufacturer: ZTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Industrial inverter welding machine with software for welding parameters is designed for argon-arc welding of steels, titanium, copper-containing alloys, aluminium and alloys at currents up to 800 A inclusive. It supports all types of pulse welding, high-frequency modulated welding, various control algorithms, contact/non-contact ignition and so on. It has a modular design of the power part and provides: IP 34, SP 100% at maximum current in the temperature range -40...+40° C, efficiency 96%.

The control cycle of welding arc parameters is 6.6 µs. Complete with a system of remote control and documentation of parameters PAK WeldWeb..

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

3 A

Operating voltage

380 V

Rated welding current

800 A

Length

900 mm

Weight

106 kg

Maximum power consumption, kW

34.5

Operating modes (continuous/pulse)

pulsed and short-pulsed

Width

404 mm

Height

1240 mm

No-load voltage

93 V

Maximum welding current

800 A

Type of welding current

AC, DC

argon-arc welding

3-800 ?

Manual arc welding

20-800 ?

AC mains supply voltage

300...500 V

Type of welding voltage regulation

unregulated

Load Duration (LL)

100 %

Mains frequency

50...60

Equipment

power source, autotig cold wire feeder, liquid cooling unit for bjo tig torch, cylinder cart, welding torch, ground cable, cable package, weld web remote parameter control system.

Mark

evospark

Dimensions

900x404x1240 mm

Insulation class

EFFICIENCY

96 %

Cos f

0,99

Current intensity at 100% SP

800 A

Degree of protection

ip 34

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
