Infrared Soldering Station IK-650 PRO "Comfort" with Vacuum Tweezers

Available for Import

Infrared Soldering Station IK-650 PRO "Comfort" for Precision BGA Soldering

Electric Soldering & Welding Machines

Manufacturer: TECHNO-ALLIANCE ELECTRONICS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

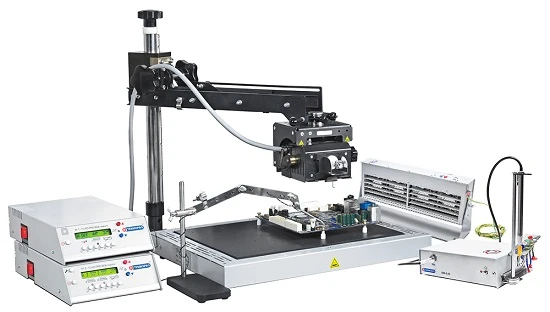

Kit with vacuum tweezers and air cooler. BGA soldering for specialty products requires precise adherence to the recommended thermal profile. In the IR-650 PRO, thermal profiling is provided by automatic temperature correction of all heaters by means of temperature feedback from the sensor, installed on the printed circuit board in the BGA soldering zone.

The IR station is equipped with vacuum tweezers and air cooler for PCBs. IR-650 PRO provides automatic soldering of any microchips installed at any point of the printed circuit board, while the size and configuration of the board play virtually no role. configuration of the board practically do not play any role.

It is estimated that since 2008 more than 2,500,000 BGA packages have been soldered on the IR-650 PRO stations. pieces of BGA packages. PLIS, DSP, CPU, GPU, memory - all these components in BGA packages can be easily installed on a multilayer printed assembly of class 5 with internal thermoconductive layers of copper of increased thickness, using infrared soldering station IK-650 PRO.

Specifications

Assignment

Universal digital infrared repair center IK-650 PRO is designed for soldering and repair of printed circuit assemblies with BGA, made both by lead-free and traditional technologies, with working out of thermal profile on heaters and printed circuit board.

Maximum power consumption power (including temperature controller)

300 W

Rated power of the infrared radiator

250 W

Length of the working surface of the infrared radiator

60 mm

Width of the working surface of the infrared radiator

60 mm

Maximum transmitter temperature

650 °C

Wavelength of IR radiation, µm

2...10

Length of the working surface of the thermostat

320 mm

Working surface width of the thermostat

240 mm

Maximum temperature of the working surface of the thermostat

350 °C

Rated capacity of the thermostat

2800 W

Recommended PCB length

350 mm

Recommended PCB width

250 mm

Maximum PCB length

400 mm

Maximum PCB width

300 mm

Power of vacuum tweezers VP-0.45

5 W

Maximum air flow rate of FC-500 air cooler, m3/min

2.3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
