Installation Pin Type C ZPC-12 for Secure Fastening in BriBase Applications

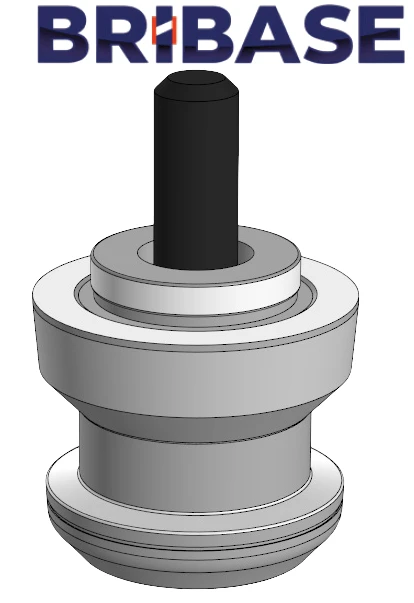

Setting pin type C is designed for fixing the tooling in the base device. Finger type C is used for clamping the workpiece. It is only used in conjunction with type A and B pins.

The seating surface of the type C pin is a reduced cone. The pin is inserted into the mating hole with a gap. The diameter of the pin is 39.3 mm.

Length 39.5 mm. Seating diameter 25h4 mm. Length of the seating area 5.0 mm.

Fixing threaded hole M12. Internal hexagon size 10 mm. Made of high-strength hardened steel.
