Available for Import

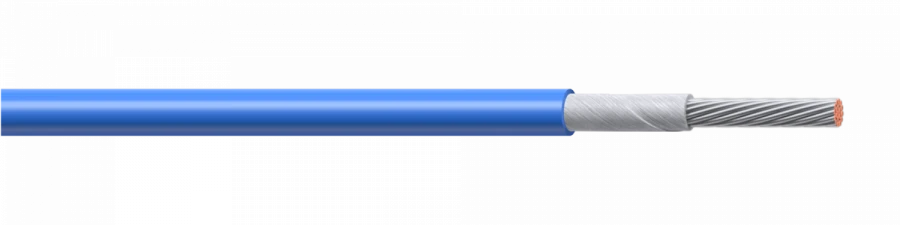

Installation Wires MGSHV-1 for Reliable Electrical Connections

On-Board Electrical Wires

Manufacturer: Podolsk Cable OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

MGSHV-1-OS assembly wires

Description

Wires with combined fibre or film, or polymer and polyvinylchloride insulation. Wires with combined fibre or film, polyvinyl chloride insulation are designed to work at operating AC voltage up to 380 V for cross sections of 0,08-0,14 mm2 and 1000 V frequency for cross sections of 0,2-1,5 mm2
frequency up to 10000 Hz and direct voltage up to 500 and 1500 V.
Service life is not less than 15 for combined fibre or film and polyvinylchloride insulation, at operation in the temperature range from minus 50 to +70°C..

Specifications

Core material

tinned copper stranded

Insulation material

synthetic film and PVC plasticate

External insulation

PVC plasticate

Climatic version

In accordance with GOST 15150-69

Application

The wires are designed for operation at operating AC voltage up to 380 V for cross sections 0,08-0,14 mm2 and 1000 V for cross sections 0,2-1,5 mm2 of frequency up to 10 000 Hz and DC voltage up to 500 and 1500 V respectively.

Number of cores

Section

0.12...1.5 mm²

Execution

Quality category - VP

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
