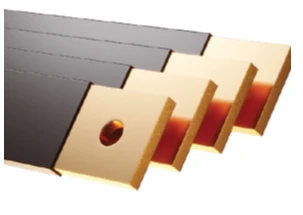

Insulated Flexible and Rigid Copper Busbars for Electrical Connections (SHMGI-10, SHMTI-10)

Designed for connection of conductors and connection of their elements at voltage up to 10 kV (in chambers of CSR, KRU, etc.). Unit designation: SHMGI-10 N x A x B x L, SHMTI-10 A x B x L, SHATI-10 A x B x L, where. SHMGI-10 - busbar type (flexible insulated copper busbar for voltage 10 kV); SHMTI-10 - busbar type (copper solid insulated busbar for voltage 10 kV); SHATI-10 - busbar type (aluminium solid insulated busbar for voltage 10 kV); A - busbar thickness, mm; B - busbar width, mm; L - length of the busbar (reamer), mm. If the length of the busbar is not standard, then the full value of the length of the busbar L in mm, through a space, without the sign "x", for example: SHATI-10 8x120x1 L290mm; SHMTI-10 8x120x1 L290mm.
